Gravel Grid 1.2m x 0.8m Panels – Permeable Driveway & Path Stabilisation, 5 Colours

What this gravel grid is

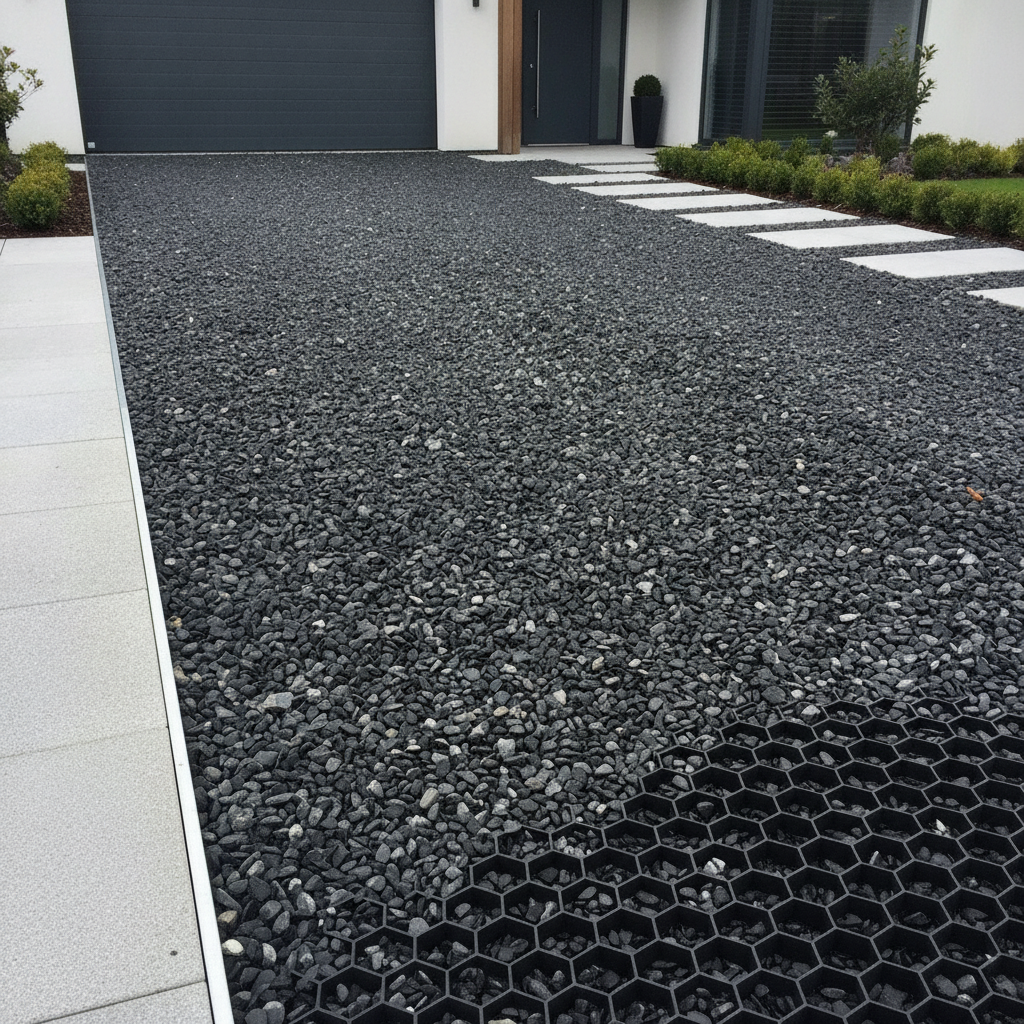

Loose gravel that scatters across the drive, sinks into ruts or leaves puddles after heavy rain usually means the stone has nothing to key into, and this gravel grid locks decorative gravel in place to create a firm, permeable driveway or path that stays flat for years. Each interlocking honeycomb panel sits below the stone, invisible once filled and raked level.

Panels are moulded from UV-stable polypropylene with a porous geotextile membrane bonded to the underside to stop weed growth and soil migration. Overlapping membrane edges on two sides join neighbouring panels into one continuous, 100% rainwater-permeable surface. Once filled with 4–12mm angular gravel, a filled panel supports a compressive load of around 300 tonnes per square metre — comfortably taking cars, vans and pedestrian traffic.

Panel size & specification

How many panels do I need?

Each panel covers 0.96 m². Divide your area in square metres by 0.96 and round up — we suggest adding 5–10% extra for cuts and edges.

Not sure how many you need? Email your measurements to sales@industrial-polymers.co.uk or call +44 1282 277786 and we will work it out for you.

Why fit a gravel grid

• Stops gravel migration – the honeycomb cells key into the stone so it stays where it is laid instead of scattering.
• SuDS compliant drainage – 100% permeable construction lets rainwater soak away instead of pooling or running off.
• Wheelchair and pushchair friendly – a stabilised gravel surface feels as firm underfoot as block paving.
• Weed suppression – the bonded geotextile membrane blocks weed growth from below.
• Five colours – White, Grey, Black, Beige and Pink let the grid disappear under matching gravel.

Beyond driveways, this gravel grid suits garden paths, patios, off-road parking bays and sloping ground up to a 15% gradient.

Laying in four steps

1. Excavate 60–80mm below finished level and lay a compacted MOT Type 1 sub-base.
2. Lay the panels membrane-side down, overlapping the membrane edges so the grid joins into one surface.
3. Interlock neighbouring panels and trim edge panels with a hand saw or angle grinder where needed.
4. Fill with 4–12mm angular gravel to around 10mm above the cells and rake level.
