Modular Hose & Cable Ramp - 535 x 295 x 118 mm

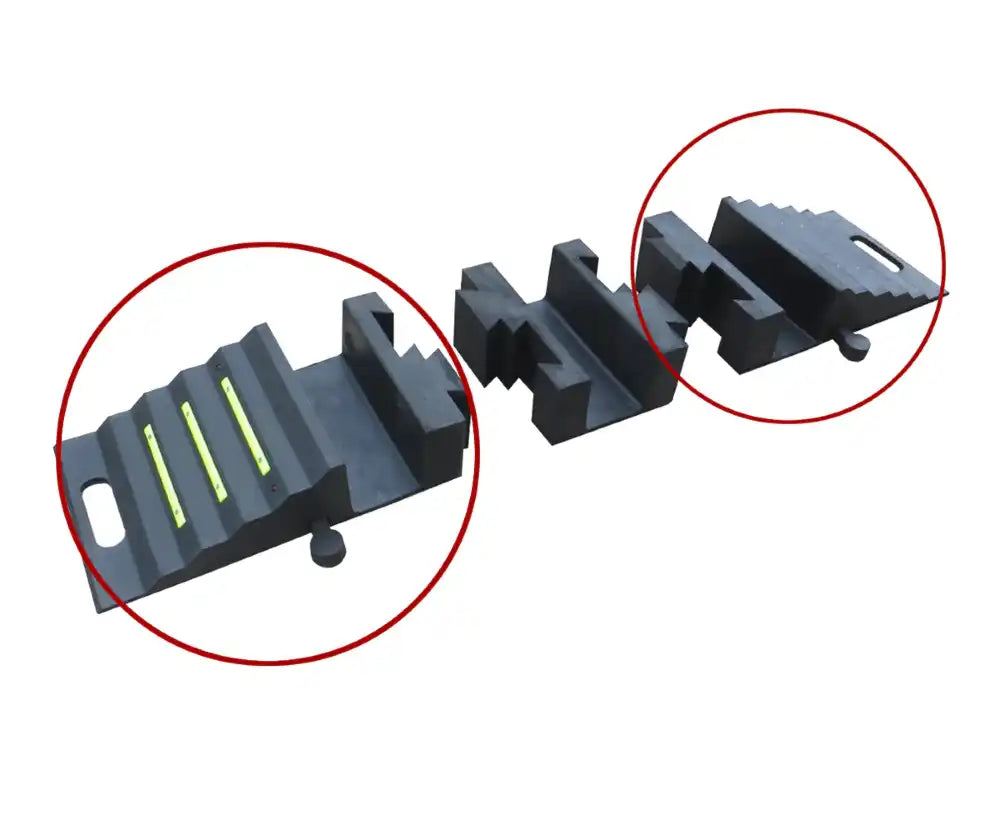

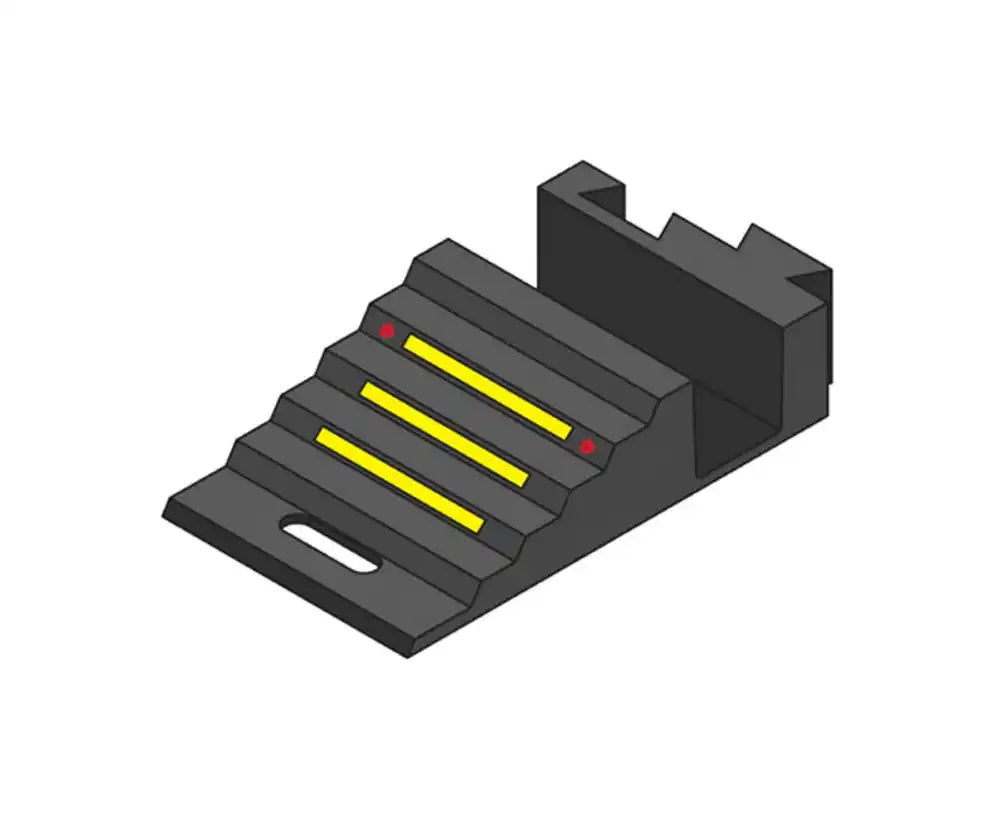

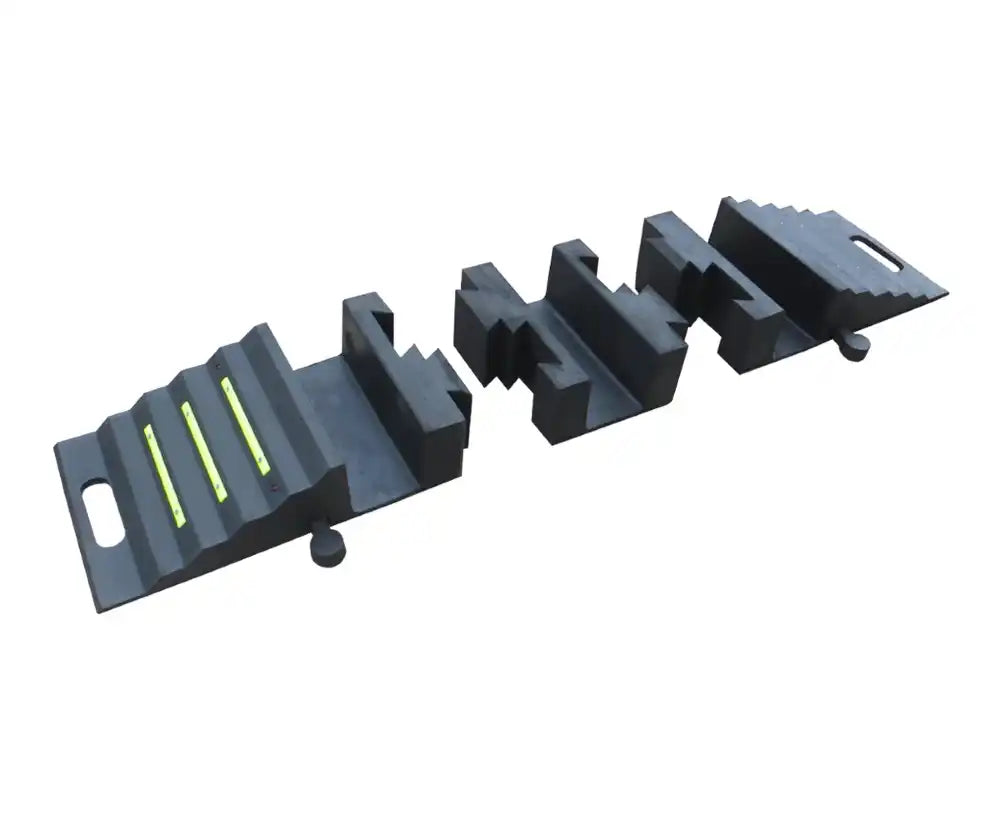

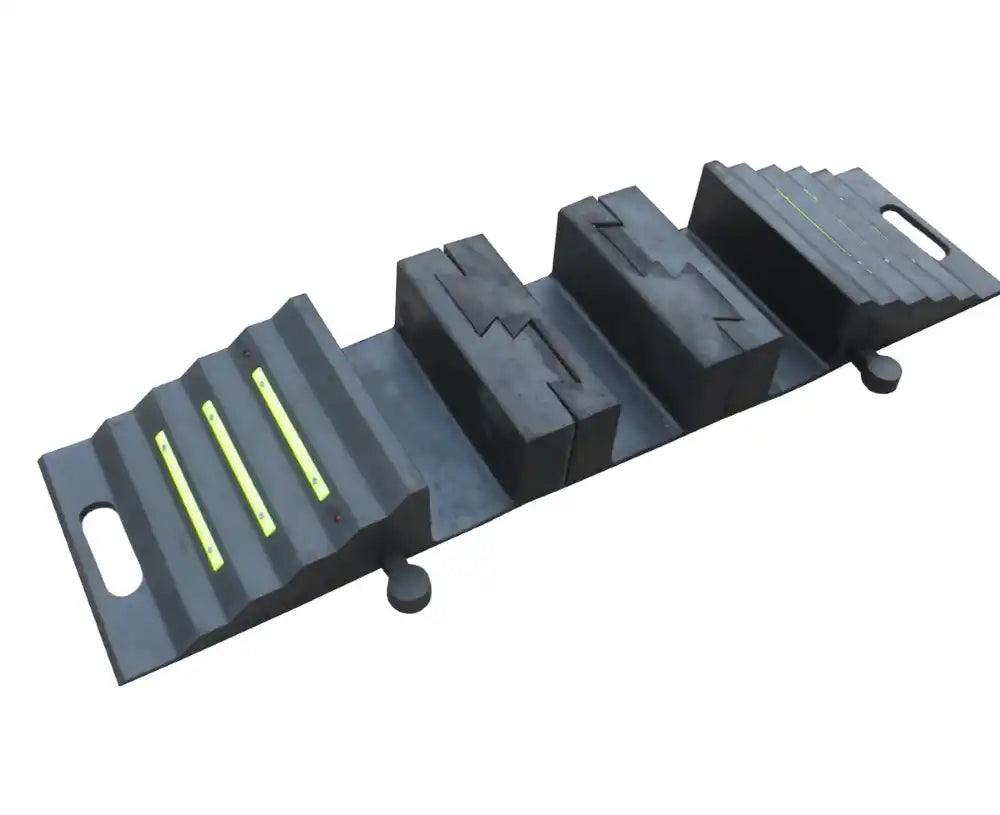

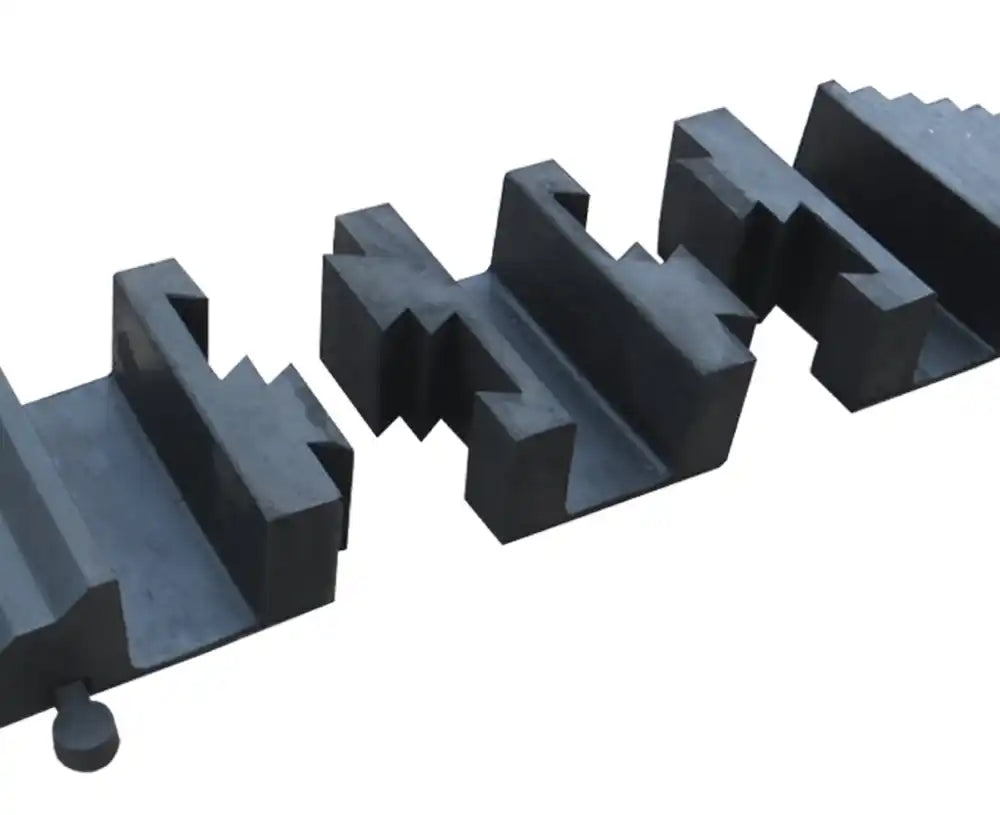

The SN232 Hose and Cable Ramp is the ramp portion of a modular system that allows for many hoses and cables to be protected. The central section of this system is SN231. The part has one open top channel. The channel is 108mm at the base opening up to 115mm at the top. The depth of each channel is 110mm. Each part can be joined to another to make a ramp for an infinite number of cables.If required 2 pieces of SN232 can be fitted together to make a ramp suitable for 2 x 100mm hose or cable, when packing these away it is possible to split the ramp and store face to face to take up less space than a standard hose ramp.

The section is supplied with one connector fitted. Spares available if required (see SN221).

Max axle weight:

• 12 Tonnes

Approx Dims:

• 535 x 295 x 118 mm

Weight:

• 10 kg
