Adjustable Clearance Wall Bracket for Edge Protection Barrier

Secure vertical bracket for temporary edge protection barriers.

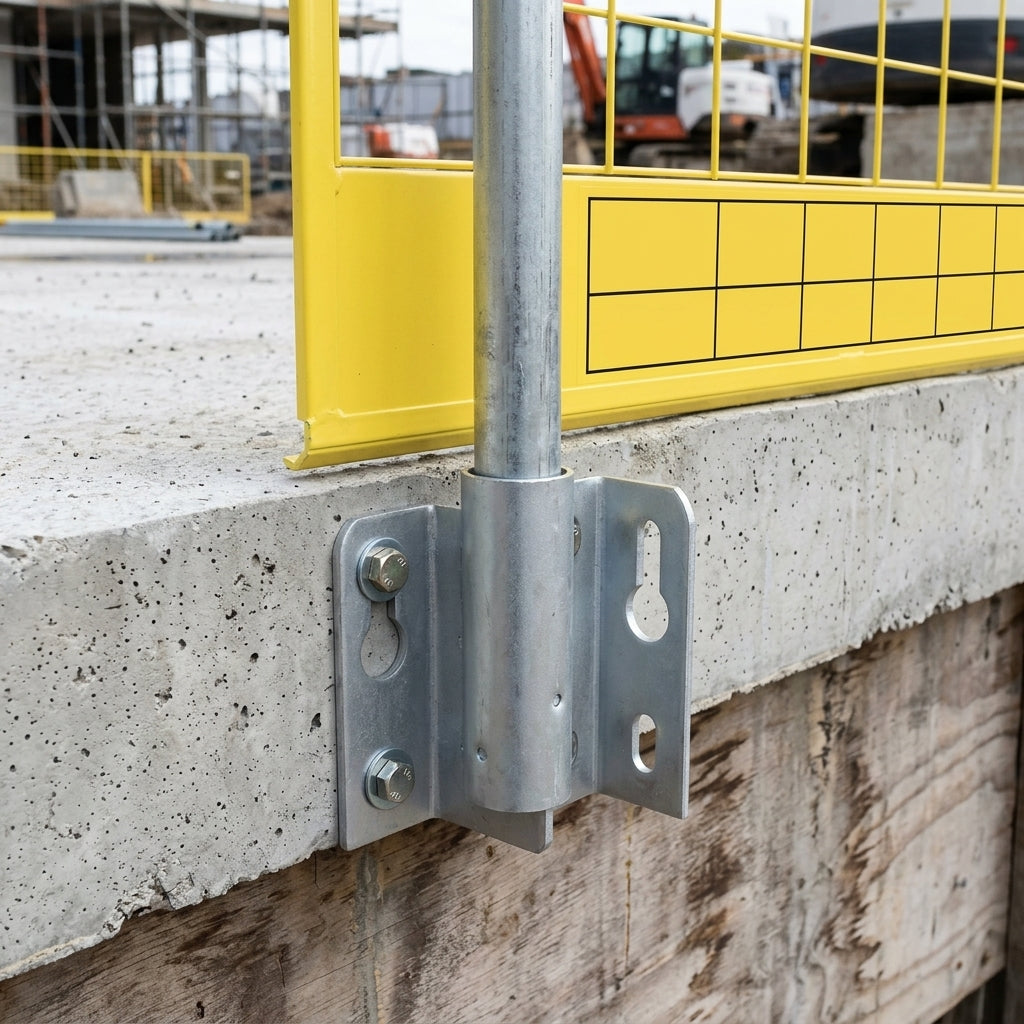

This vertical bracket is designed to safely connect temporary edge protection barriers to the edge of concrete slabs, providing essential safety for site workers. It offers two clearance distances to accommodate framed facade system overhangs, making it suitable for various installation requirements.

Key Features

• Durable aluminium construction
• Lightweight and easy to handle
• Supports two clearance options for overhangs
• Stackable for efficient storage (100 per stillage)
• Reusable with screw anchor fixing

Specifications

• Dimensions: 170mm x 60mm x 200mm
• Weight: 1.4Kg
• Material: Aluminium
• Fixes to concrete slab edge using two screw anchors
• Two clearance distances for facade systems
• Stackable: 100 per stillage

Applications

• Securing edge protection barriers on construction sites
• Accommodating systemised framed facade installations
• Supporting pre-built facade section overhangs
• Temporary safety installations for site workers
