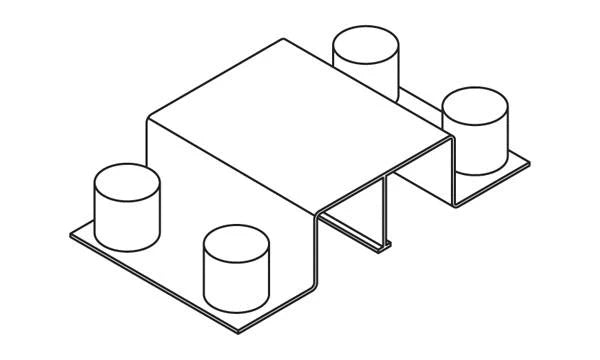

Central Steel Bridge Ramp - 370 x 400 x 190 mm

The SN241 Hose and Cable Ramp is the central steel bridge for the modular ramp system designed to take a larger diameter hose up to a maximum of 177mm diameter. This particular steel bridge can accommodate 2 x 177mm dia hoses/cables. Using the rubber elements of this system it is possible to make a ramp 3400mm long which enables most cars to traverse the ramp without "beaching". The design allows for the front wheel to still be up in the rubber blocks when the rear wheel starts up the leading edge of the ramp.

This steel bridge has a galvanized finish with red powder coating over (Red is RAL3020)

This product has been redesigned and upgraded to 7mm thick steel.

Colour:

• RAL3020 Red

Channels:

• 180mm width x 177mm depth

Max Load:

• 44 Tonnes

Approx Dims:

• 370 x 400 x 190 mm

Weight:

• 41.5 kg
