Porous Ground Reinforcement Grid - 1528 kN/m² Load Capacity

High-strength porous grid for ground stabilisation and reinforcement.

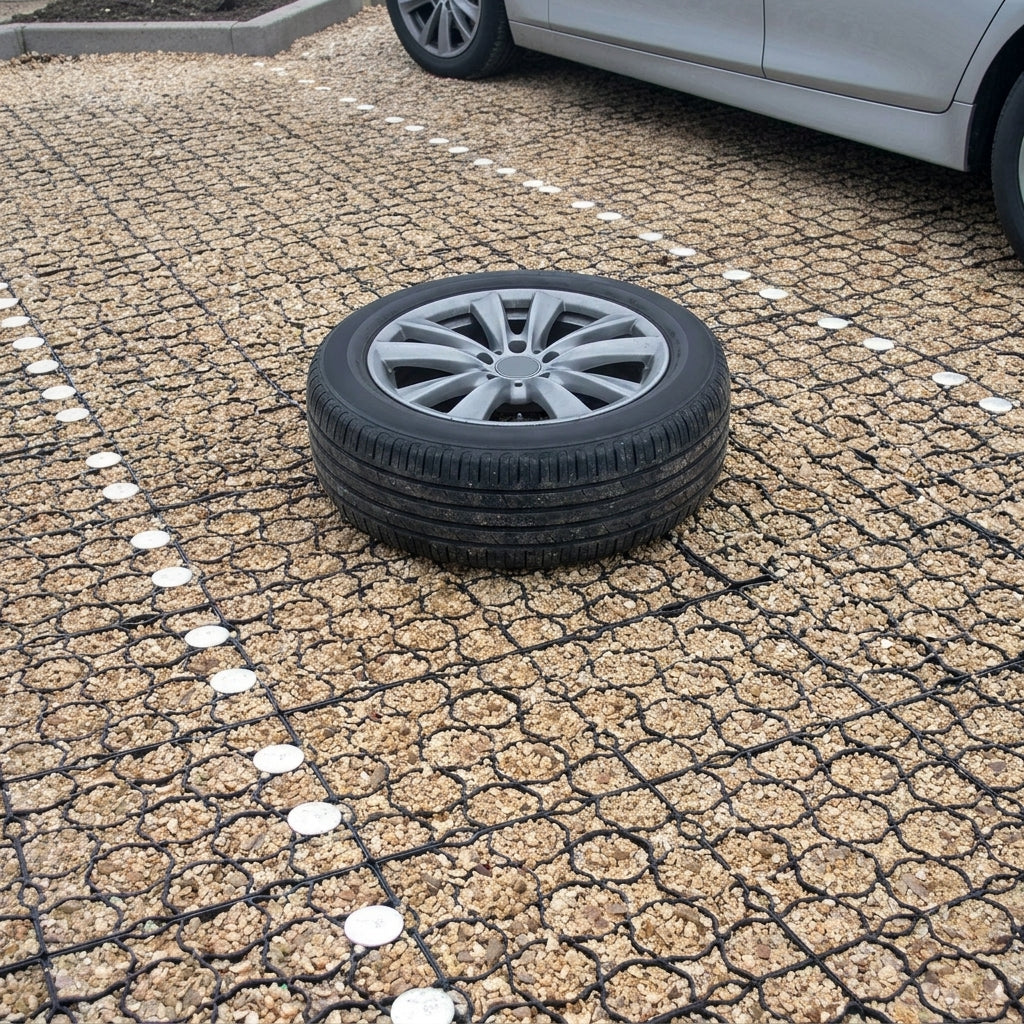

This porous paving grid is designed for robust ground reinforcement, supporting both vehicle and pedestrian access. Manufactured from 100% recycled polyolefins, it offers an environmentally friendly solution for stabilising surfaces while allowing water to drain through efficiently. The interlocking system ensures quick installation and reliable performance under heavy loads.

Key Features

• Supports high load pressures up to 1528 kN/m²
• Manufactured from 100% recycled and recyclable polyolefins
• Honeycomb structure for effective water permeability
• Simple interlocking design for fast installation
• Compliant with SUDS (Sustainable Urban Drainage Systems) regulations
• Can be filled with gravel, stone, or soil/grass mixes

Specifications

• Dimensions: 330mm x 330mm x 40mm
• Weight: 0.46Kg (4.14Kg per 1m2 panel)
• Material: 100% recycled polyolefins
• Load capacity: Minimum 1528 kN/m² (156 t/m²)
• Interlocking T system
• PTV 828 standard, minimum strength 3 kN/m length

Applications

• Car park surface reinforcement
• Access roads for vehicles
• Pedestrian walkways
• Ground stabilisation for event sites
• Driveways and emergency access routes
