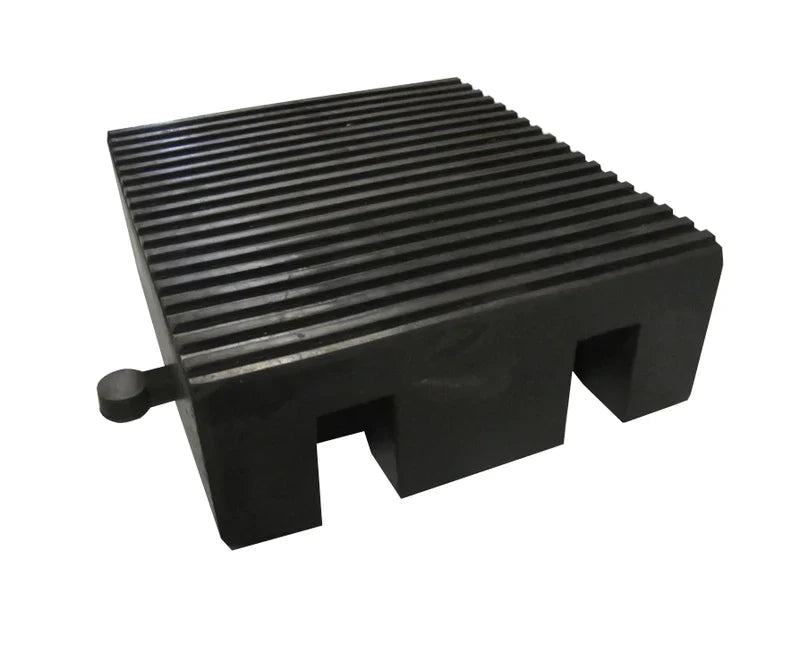

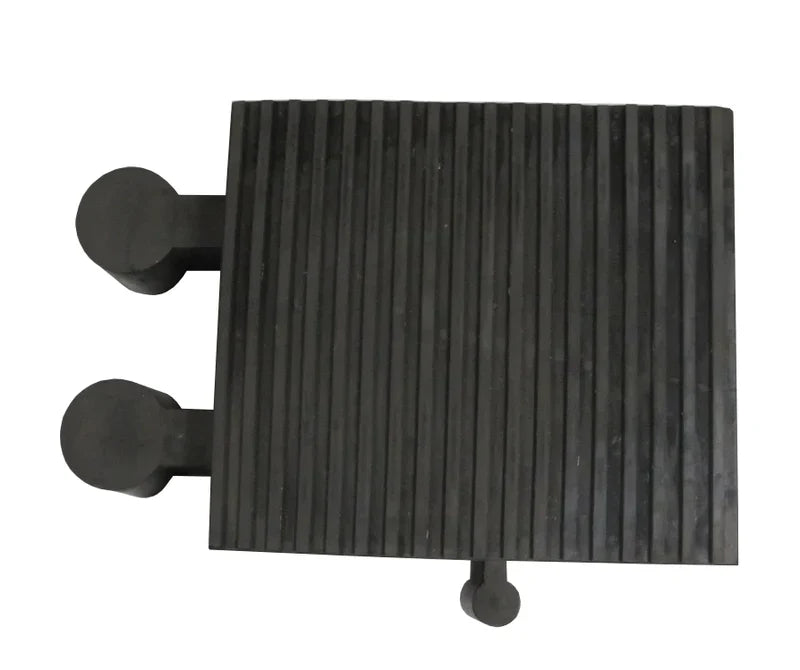

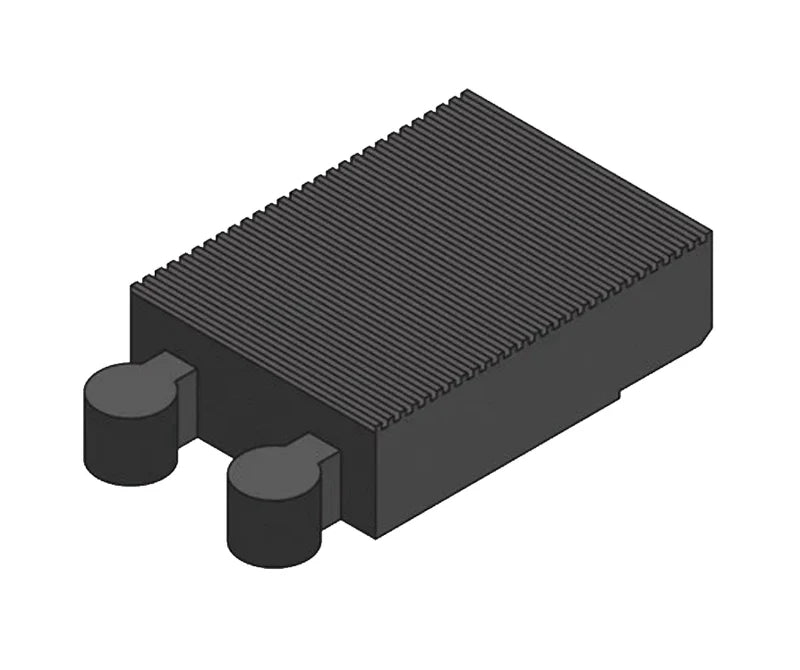

Rubber Block Section Hose Ramp

The SN237 Hose and Cable Ramp is the rubber block section for the modular ramp system designed to take larger diameter hose from 140mm up to a maximum of 180mm in diameter depending upon which steel bridge section is used. This particular part keeps the vehicle up 160mm above the ground. Used with other rubber elements of this system it is possible to make a ramp 3400mm long which enables most cars to traverse the ramp without "beaching". The design allows for the front wheel to still be up on the rubber blocks when the rear wheel starts up the leading edge of the ramp.

The ramp is supplied with 1 connector fitted. Spares are available if required (see SN221).

Not suitable for tracked vehicles.

Max axle weight:

• 12 Tonnes

Approx Dims:

• 450 x 400 x 160 mm

Weight:

• 33 kg
