Shower Screen Seal - 4-6mm Glass, Seals 45-55mm Gaps

What this seal is

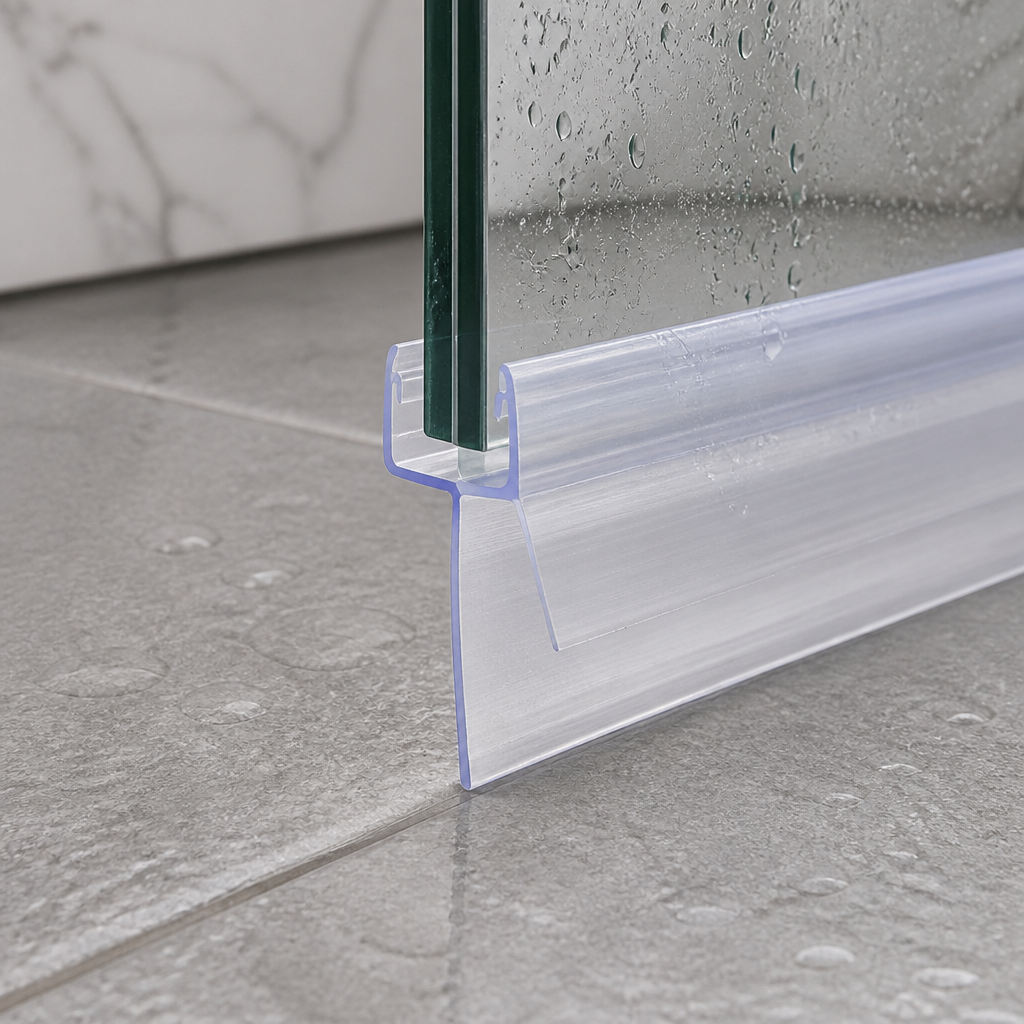

A clear replacement seal for shower doors and bath screens with 4–6mm glass. The rigid PVC U-channel pushes straight onto the edge of the glass — no adhesive, no screws, no drilling — and seals very large gaps of 45mm to 55mm between the glass and the tray, tiles or wall, stopping water escaping every time you shower.

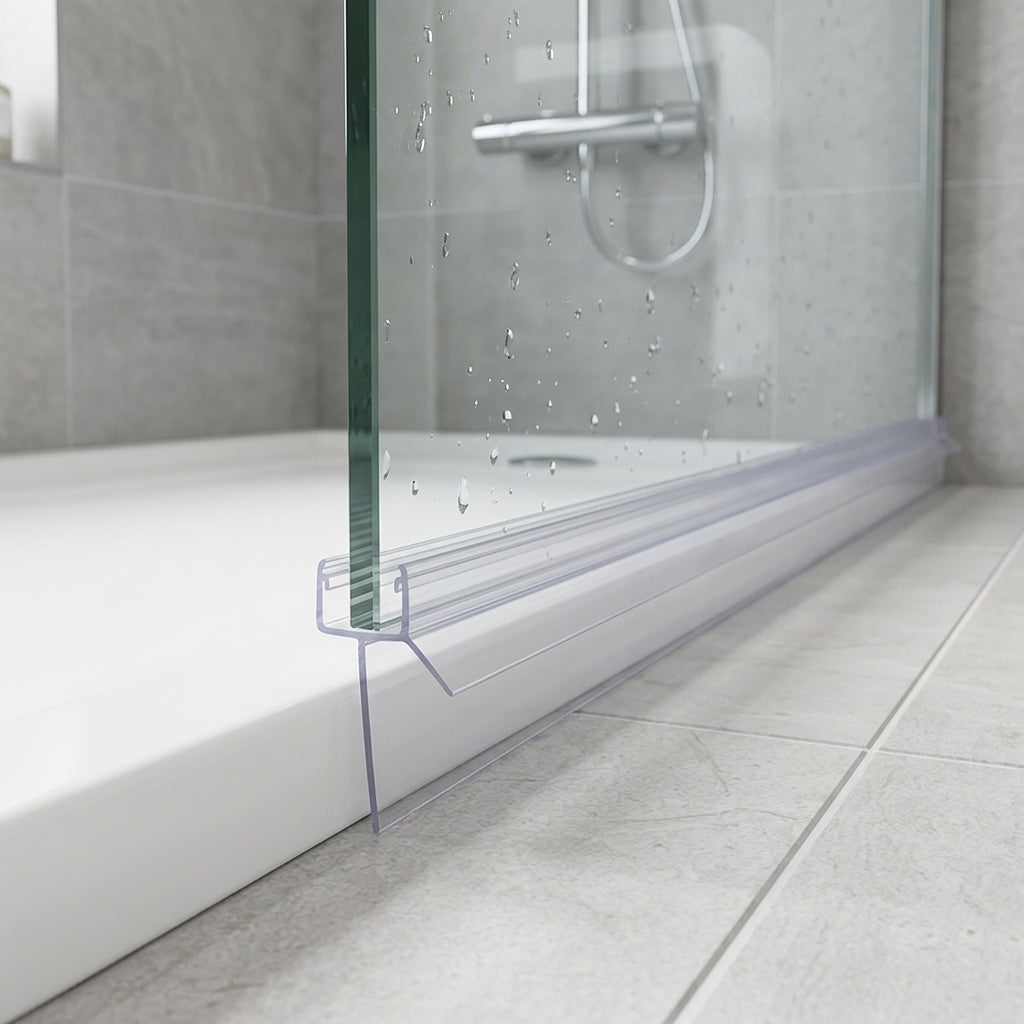

You will most often find this profile along the bottom horizontal edge of a bath screen or shower door, but it works just as well fitted vertically on the upright of the glass to seal against the tiles or wall.

Specification

Why fit this seal

Bridges a gap most seals cannot. With a 45–55mm sealing range, this profile closes the kind of oversized gap left by a low tray or a high-hung screen that ordinary seals have no hope of reaching.

Stops leaks and protects floors. A gap this size lets serious amounts of water escape. Sealing it protects flooring, skirting and plaster from long-term water damage.

No adhesive, no mess. The U-channel grips 4–6mm glass on its own — it slides straight on and can be removed again without leaving residue on the glass.

Cut to fit at home. Order the next length up and trim it down for a perfect fit, or use our custom cutting service and it arrives ready to fit.

Fitting in three steps

1. Measure. Check your glass is 4–6mm thick, measure the edge you need to seal and confirm the gap to close is between 45mm and 55mm.

2. Choose. Pick the nearest length at or above your measurement — 800mm, 900mm, 1400mm or 2000mm.

3. Fit. Trim to length if needed, then push the channel onto the edge of the glass so the seal closes the gap towards the tray, wall or tiles. No tools, no adhesive, no drying time.

Not sure it fits?

Email a photo of your old seal or your measurements to sales@industrial-polymers.co.uk and our UK team will confirm the right profile and size before you order — usually the same working day. Got curved glass? We can curve this seal to your measurements — just get in touch and we'll send you our simple measuring guide.
