Tapered Shower Seal - 6-8mm Glass, Fin 10mm to 5mm, 900mm

What this seal is

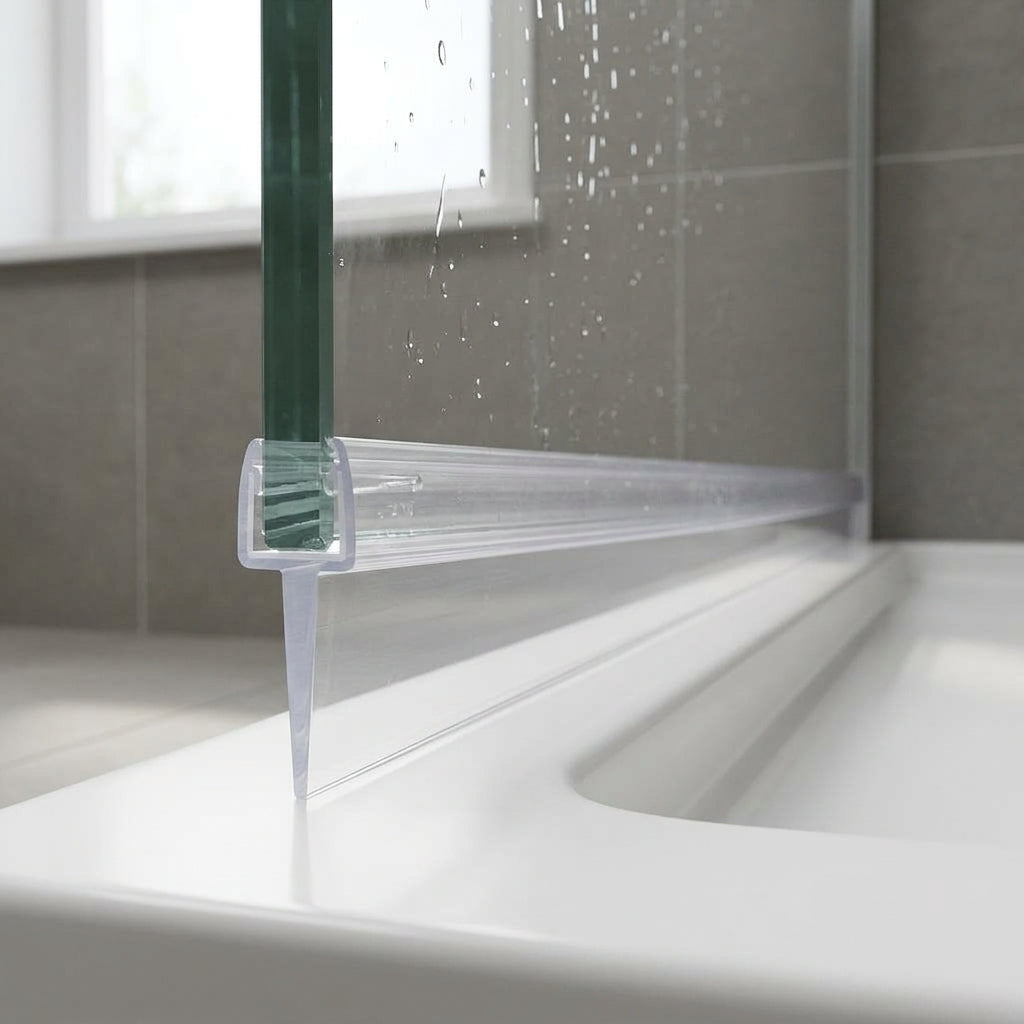

A clear tapered seal for shower screens and bath screens with 6–8mm glass. The rigid PVC U-channel pushes straight onto the edge of the glass — no adhesive needed — and the soft flexible fin beneath is tapered in height, running from 10mm at one end down to 5mm at the other.

That taper is the whole point: it closes an uneven gap between the bottom of the glass and the top of the bath or tray — the kind of sloping gap a straight seal can never quite cover. It is designed for straight glass only, though we also offer a curving service for curved screens.

Which tapered size do I need?

Our tapered seals come in a number of different sizes to accommodate any size of gap — this one tapers from 10mm to 5mm. In most cases we recommend choosing a seal with a fin 2–5mm bigger than the gap you need to seal, so the flexible fin compresses for a tight finish. Please refer to the product diagrams for exact sizes.

Specification

Why fit this seal

Seals a sloping gap properly. If your screen sits out of level with the bath or tray, a straight seal leaves a leak at one end — the tapered fin follows the slope and closes the gap along its whole run.

No adhesive, no mess. The U-channel grips 6–8mm glass on its own — it pushes straight on and can be removed without leaving residue on the glass.

Barely visible once fitted. The clear PVC blends with the glass, so the fix doesn’t change the look of your enclosure.

UK stock, fast dispatch. Held in stock in the UK and dispatched same working day when ordered before 2pm.

Fitting in three steps

1. Measure. Check your glass is 6–8mm thick, then measure the gap at both ends of the run so you know how it slopes.

2. Choose. Pick the tapered size whose fin is 2–5mm bigger than your gap — this profile runs from 10mm down to 5mm — and check it against the product diagrams.

3. Fit. Trim the 900mm length to size if needed, then push the channel onto the edge of the glass with the deeper end of the fin over the wider end of the gap.

Not sure it fits?

Email a photo of your old seal or your measurements to sales@industrial-polymers.co.uk and our UK team will confirm the right taper and size before you order — usually the same working day. Got curved glass? We can curve this seal to your measurements — just get in touch and we’ll send you our simple measuring guide.
