Tufnol 1P/13 Grade Sheet 1–25mm | Phenolic Paper Laminate

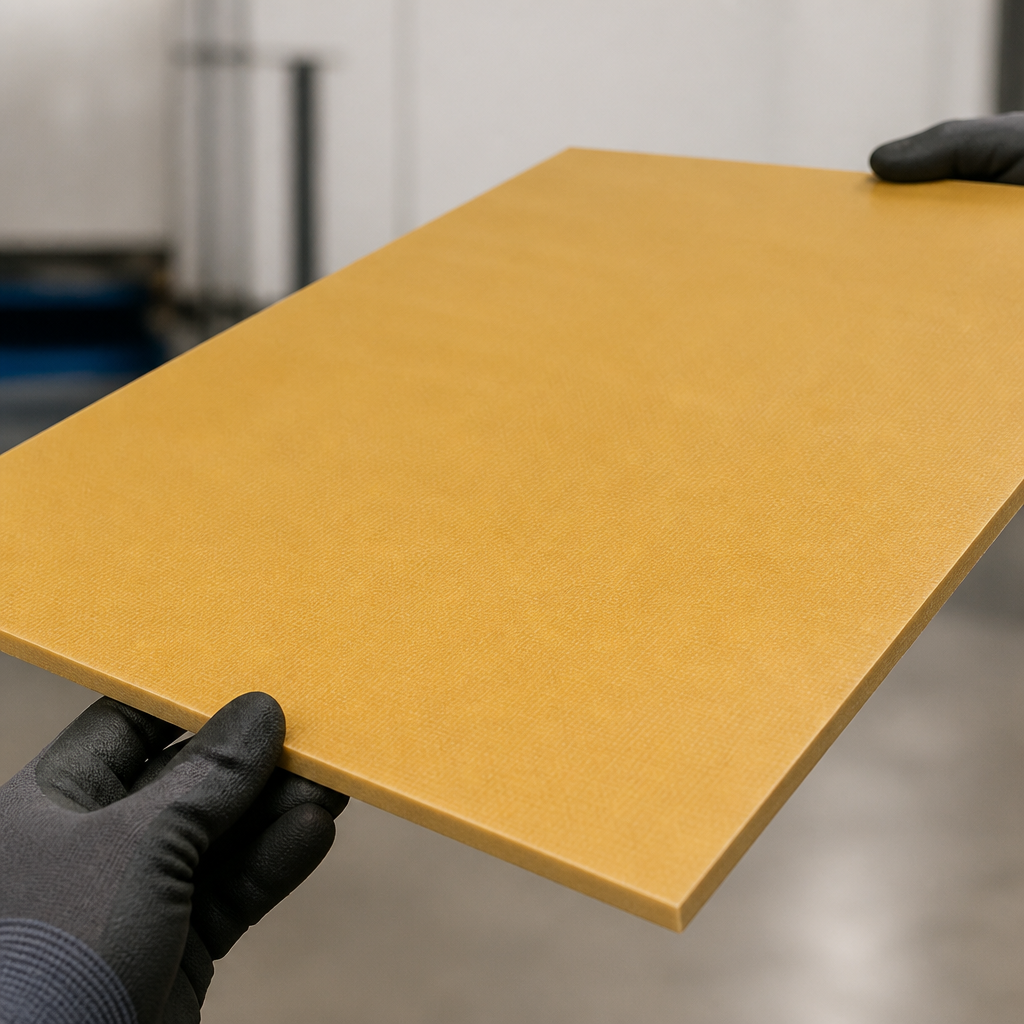

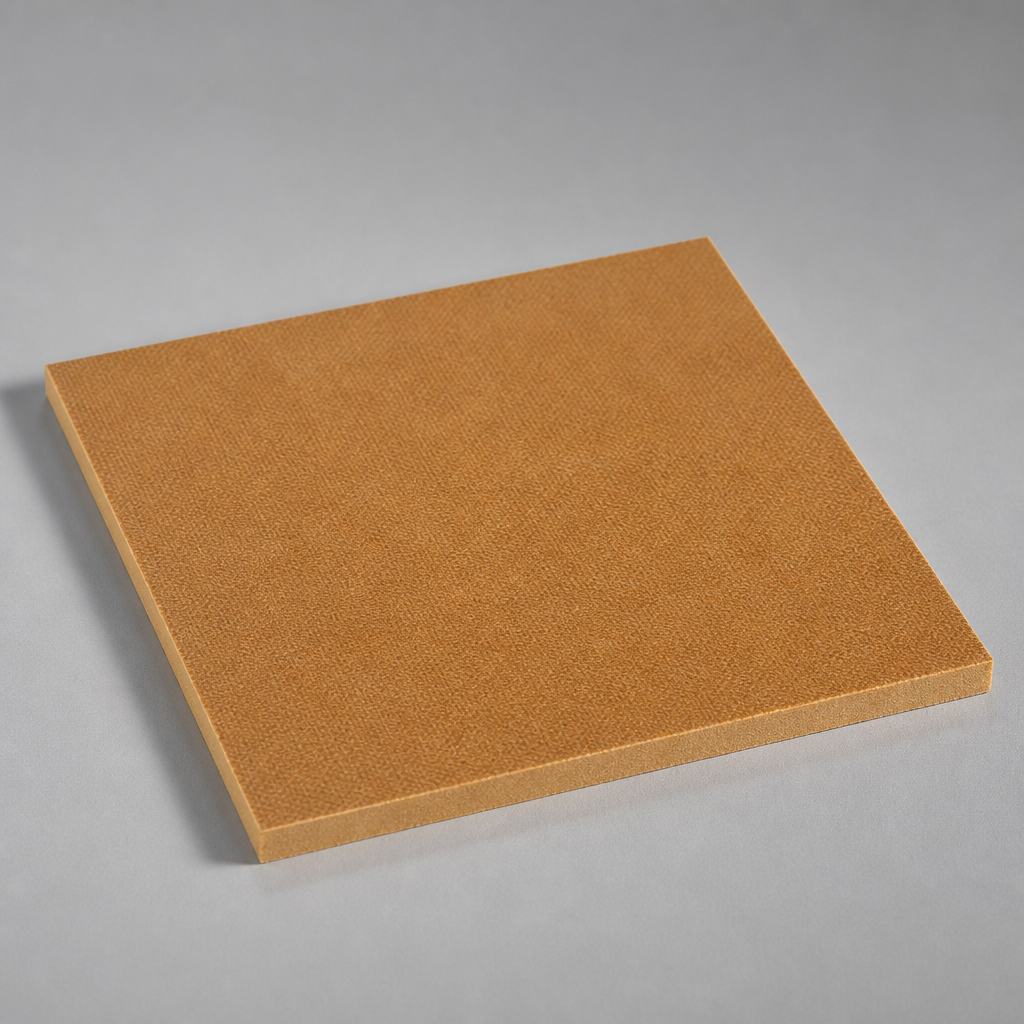

Tufnol 1P/13 is a high-strength phenolic paper laminate sheet.

This material is engineered for electrical insulation and light to medium-duty mechanical tasks. Constructed from cellulose paper layers with phenolic resin, it ensures dimensional stability and resistance to wear and moisture. It machines cleanly, making it suitable for precision components requiring reliable dielectric performance.

Key Features

• Electrical Insulation: Excellent for low to medium voltage applications.
• Mechanical Strength: High strength with good rigidity and stability.
• Machinability: Machines cleanly for precise components.
• Moisture Resistance: Resistant to wear and moisture.
• Oil Resistance: Withstands oils and common industrial fluids.

Applications

• Control Gear: Ideal for electrical control systems.
• Switchgear: Suitable for switchgear components.
• Engineering Projects: Used in various engineering applications.
• Terminal Boards: Commonly used for terminal boards.
• Jigs and Fixtures: Perfect for creating jigs and fixtures.

Frequently Asked Questions

What sizes are available?
This sheet is available in 73 size options, with thicknesses from 1 mm to 25 mm, lengths from 295 mm to 1200 mm, and widths from 140 mm to 1200 mm.

Is this material suitable for outdoor use?
While it offers good moisture resistance, it is primarily designed for indoor applications.

Can it be used in high-voltage applications?
It is best suited for low to medium voltage applications due to its electrical insulating properties.

How does it perform under mechanical stress?
It provides high mechanical strength and good rigidity, making it suitable for various mechanical applications.

Is it easy to machine?
Yes, it machines cleanly to tight tolerances, ideal for precision components.

What fluids is it resistant to?
It is resistant to oils and most common industrial fluids.

Can it be customised?
Yes, it can be cut or machined to bespoke sizes within the available range.

What are typical uses?
Common uses include terminal boards, jigs, fixtures, gears, and wear pads.
