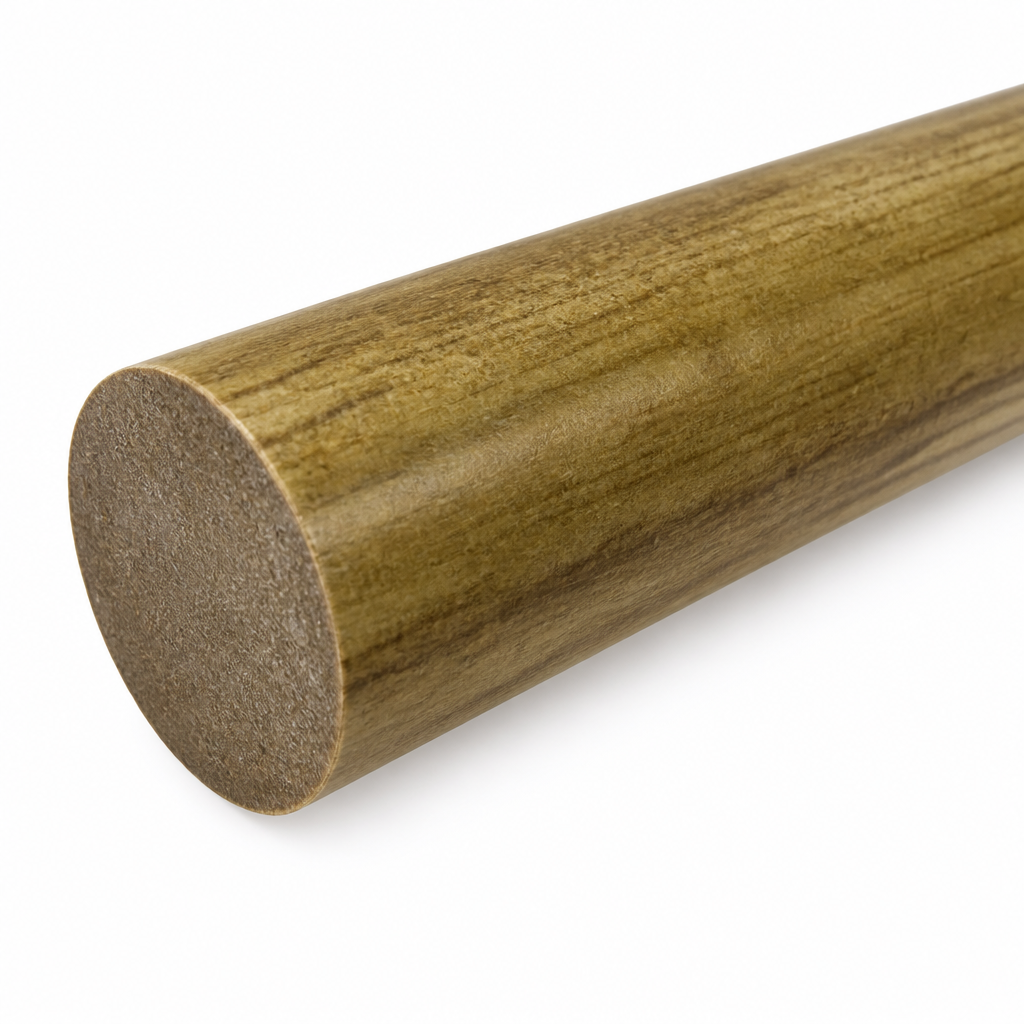

Tufnol Rod 90mm Diameter for Mechanical Engineering Applications 90mm to 100mm diameter

Whale Tufnol Rod is a durable cotton and phenolic resin laminated plastic. Ideal for mechanical engineering, it is used in various wear-resistant components.

Material Composition

Whale Tufnol Rod is made from medium weave cotton fabric laminated with phenolic resin. This combination creates a strong and rigid material suitable for mechanical applications.

Mechanical Properties

The rod has a density of 1.35 g/cm³, with a tensile strength of 68 MPa and a compressive strength of 310 MPa when flatwise. It maintains dimensional stability and can withstand heavy loads with minimal creep.

Thermal and Chemical Resistance

Tufnol Rod can operate continuously at temperatures up to 120°C and intermittently at 130°C. It exhibits excellent resistance to chemicals, oils, and solvents, although concentrated acids and alkalis may affect it.

Applications and Limitations

This rod is ideal for spacers, bearings, and low voltage insulation. However, it is not suitable for high voltage applications, gears, or washers due to its layered structure.

Machining and Bonding

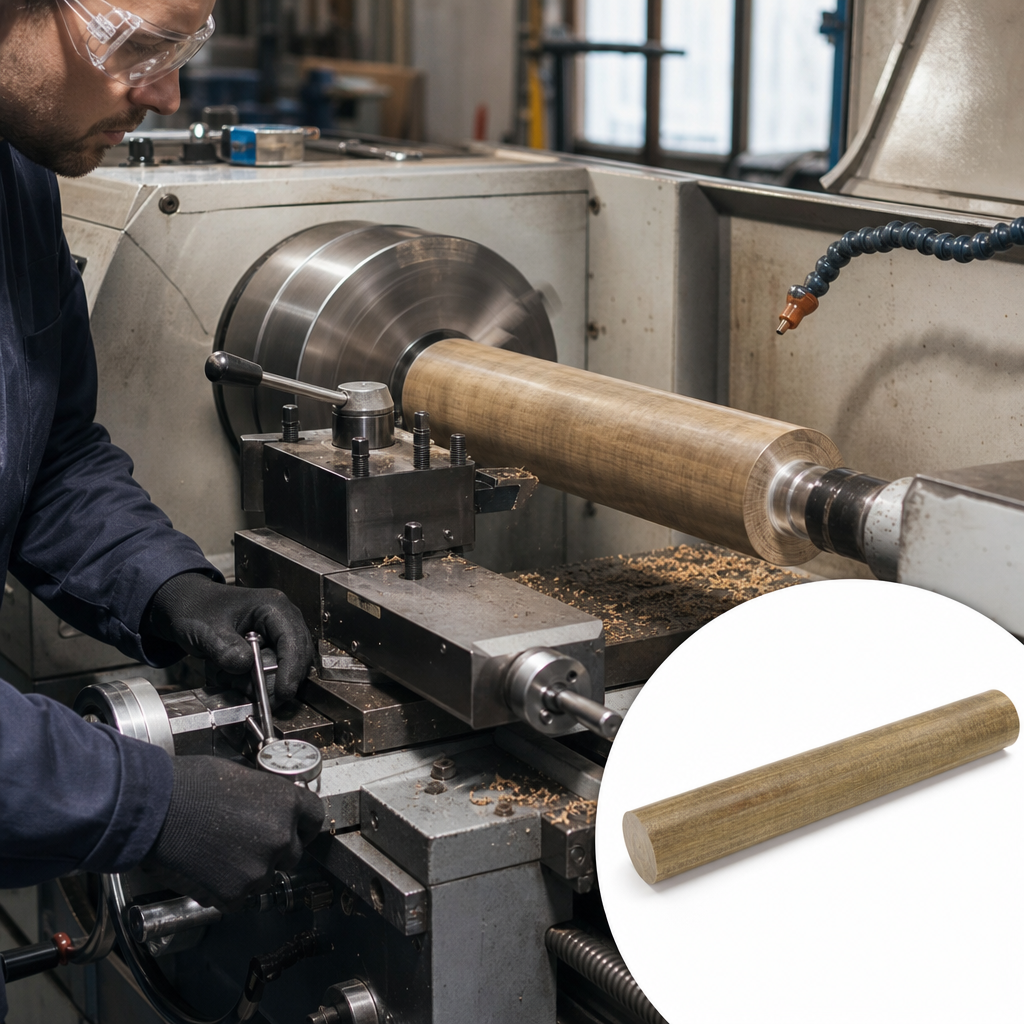

Tufnol Rod can be easily machined using standard tools. It can be bonded with adhesives like epoxy or contact adhesives, but care must be taken during machining to avoid dust.

Specifications

• Density: 1.35 g/cm³
• Tensile strength: 68 MPa
• Compressive strength (flatwise): 310 MPa
• Maximum working temperature (continuous): 120°C
• Maximum working temperature (intermittent): 130°C
• Diameter range: 6mm to 100mm

Benefits

• High strength-to-weight ratio
• Stable performance under load
• Durable in various environments
• Easy to machine and shape
• Long-lasting and reliable in mechanical applications

Use Cases

• Bearings
• Bushes
• Spacers
• Low voltage insulation

FAQ

Q: Is Tufnol Rod suitable for food applications?
A: No, Tufnol Rod should not be used in any food applications.

Q: Can Tufnol Rod be glued?
A: Yes, Tufnol Rod can be bonded with adhesives like epoxy and contact adhesives.

Q: What are the machining characteristics of Tufnol Rod?
A: Tufnol Rod can be easily machined using standard tools, but it can produce dust during machining.
