HDPE Sheet PE300 Natural & Black 2mm to 8mm for Food & Industrial Use

Full Technical Specification

HDPE vs Other Plastic Sheet Materials

HDPE (High Density Polyethylene / PE300) sits in the engineering plastics category alongside UHMWPE, PVC and polypropylene. Its defining characteristics are:

• Chemical resistance: HDPE resists virtually all common acids, alkalis, solvents and cleaning agents used in industrial and food processing environments
• Moisture resistance: Water absorption of less than 0.01% — HDPE can be permanently immersed without dimensional change or degradation
• Impact toughness: High impact strength without brittleness — does not shatter or crack under impact loads that would fracture glass or brittle plastics
• Low coefficient of friction: Naturally non-stick surface — ideal for sliding applications, chutes, hoppers and conveyor wear strips
• Food compliance: Natural (white) HDPE meets FDA and EU food-contact regulations — the correct specification for cutting boards, food processing surfaces and direct food contact applications

Against acrylic: HDPE is tougher, more chemical resistant and more easily welded, but not optically transparent. Against polypropylene: HDPE is denser, slightly harder and better for structural applications. Against UHMWPE: PE300 (HDPE) is more rigid and easier to machine; UHMWPE offers superior abrasion resistance for extreme wear applications.

Thickness Selection Guide

Natural (White) vs Black — Which to Choose

Natural (white) HDPE is the food-contact compliant grade — the correct specification for cutting boards, food preparation surfaces, hygienic liners and any application involving direct contact with foodstuffs. The white colour also allows visual detection of contamination and simplifies hygiene inspection. Natural HDPE is the same material as black — the colour is the only difference for most applications.

Black HDPE is produced with a carbon black additive which provides additional UV stabilisation, making it the preferred grade for outdoor applications, marine use and any environment with prolonged UV exposure. Black is also preferred where the white appearance of natural HDPE is aesthetically inappropriate — industrial components, machine parts, structural panels.

Common Applications

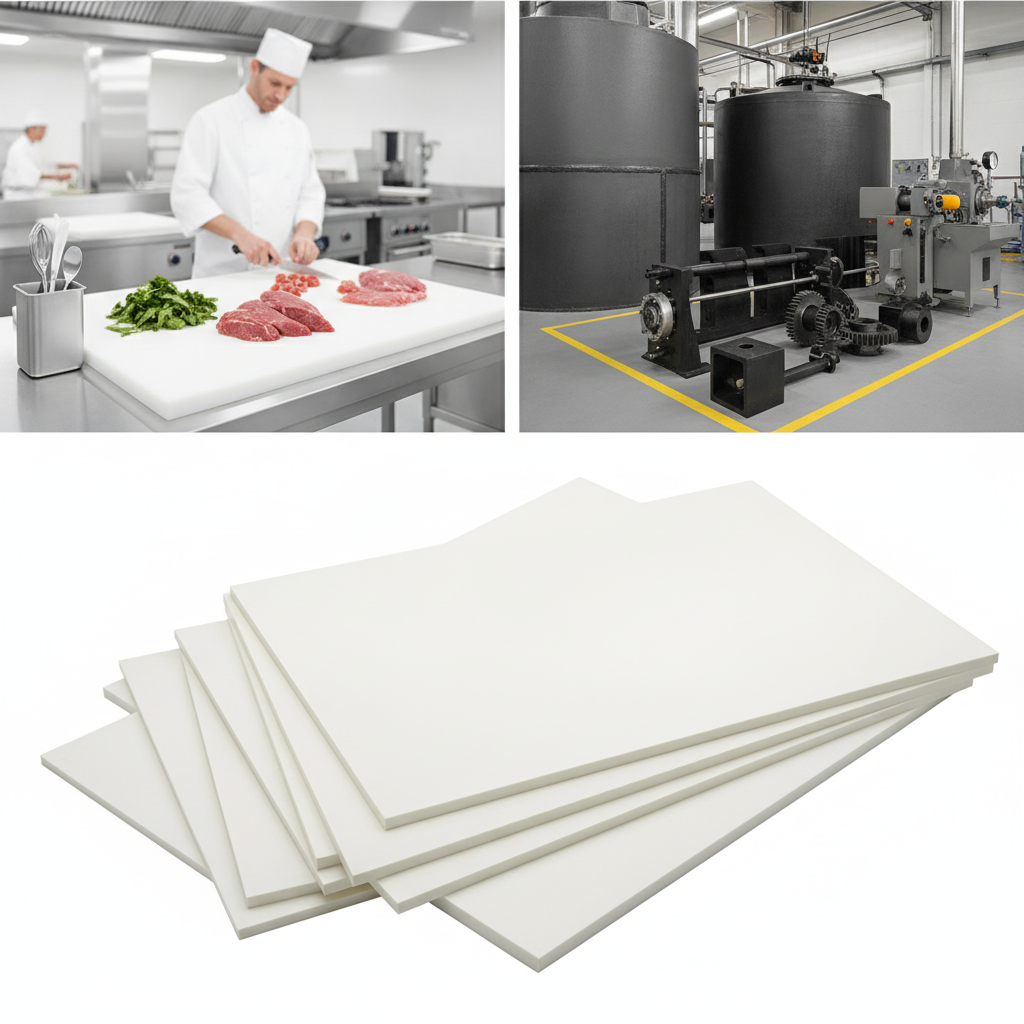

• ? Commercial cutting boards and food preparation surfaces — the standard material for professional kitchen and food processing environments; complies with food safety regulations and withstands commercial knife use
• ? Chemical storage tank linings — HDPE's exceptional chemical resistance makes it the primary material for lining tanks, sumps and bunds handling acids, alkalis and industrial chemicals
• ? Marine components — used for transom pads, fender boards, rub strakes, boat fittings and any marine application requiring corrosion resistance and dimensional stability in water
• ? Conveyor wear strips and guides — the low friction surface reduces conveyor chain wear and provides a smooth, durable slide surface in food and industrial conveying systems
• ? Agricultural and outdoor applications — UV-resistant black HDPE is specified for agricultural equipment components, outdoor signage backing and exposed structural elements
• ? Engineering fabrication — machines and welds easily; used for custom components, brackets, manifolds, jigs and fixtures requiring dimensional stability and chemical resistance
• ? Construction and civil engineering — damp-proof membranes, drainage pond liners, protective cladding for concrete formwork and structural separation sheets
• ? Playground and recreational equipment — impact-resistant panels for play equipment, skate parks, garden furniture and outdoor installations

Working With HDPE Sheet

Cutting

HDPE cuts cleanly with standard woodworking tooling — circular saw, jigsaw or router. Use a medium-tooth blade. Feed speed can be faster than for acrylic; HDPE is softer and less prone to chipping. Score-and-snap is not recommended — HDPE is too tough and flexible to snap cleanly on thin scores.

Drilling

Standard HSS drill bits work well. Use a slow to medium spindle speed and moderate feed rate. HDPE drills without chipping. Back the sheet with a wooden board to prevent break-out on exit. No pre-heating required.

Machining

HDPE machines with standard turning and milling tooling. Carbide or HSS. Use flood coolant if available, or air blast to clear chips. High rake angles are preferred. Excellent surface finish achievable.

Welding

HDPE welds well with a hot-air plastic welder using compatible HDPE rod. Welded joints in HDPE can achieve 80–90% of parent material strength — suitable for tank fabrication and structural applications.

Bonding

HDPE has a naturally non-stick surface that resists most adhesives. Mechanical fastening (bolts, screws, rivets) is the preferred joining method. Surface flame treatment or specialist PE-specific adhesive primers can enable adhesive bonding where required.

Frequently Asked Questions

Is HDPE the same as PE300?

Yes — PE300 is the European engineering designation for HDPE (High Density Polyethylene). The materials are identical. PE300 refers to the density range (=300 kg/m³ over base value) and is commonly used in engineering and industrial specifications. HDPE is the more common commercial term. Both refer to the same extruded high-density polyethylene sheet.

Is HDPE food safe?

Natural (white) HDPE complies with FDA 21 CFR and EU Regulation 10/2011 for food contact materials. It is the standard material for commercial cutting boards, food processing liners and direct food contact surfaces. Black HDPE contains carbon black additive — not recommended for direct food contact unless specifically certified.

Can HDPE be used outdoors?

Yes — particularly black HDPE, which contains UV stabilising carbon black additive. Natural HDPE has lower UV resistance and will surface-chalk over long periods of UV exposure. For outdoor applications, specify black HDPE or apply a UV-stabilising paint or coating to natural grade.

What is the difference between HDPE and UHMWPE?

UHMWPE (Ultra High Molecular Weight Polyethylene) has a much higher molecular weight than HDPE, giving superior abrasion resistance and impact toughness. HDPE is stiffer, easier to machine to tight tolerances and more cost-effective. For general engineering and food-grade applications, HDPE is usually the correct choice; for extreme wear applications, UHMWPE is specified.

Do you cut to size?

Yes — we offer cut-to-size HDPE alongside standard sheet sizes. Contact us with your dimensions for a quotation.
