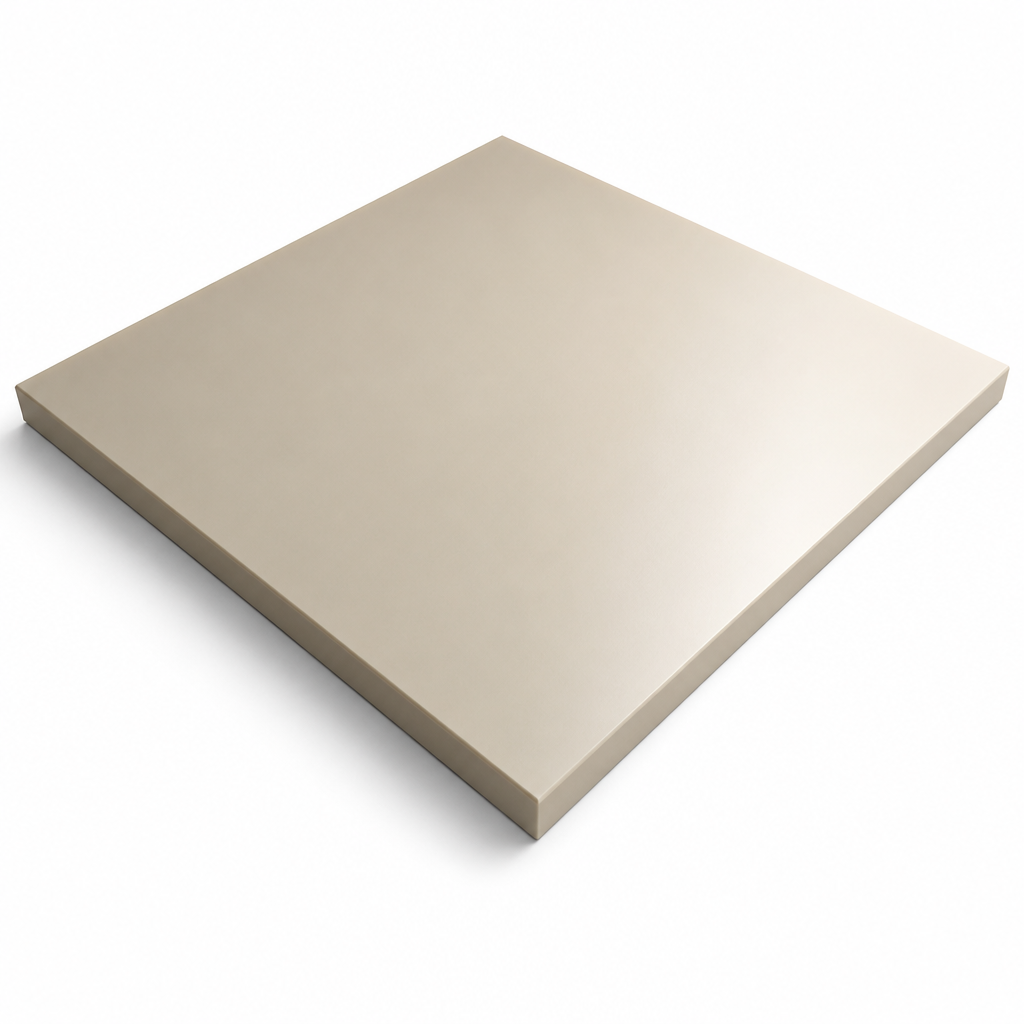

Polyetheretherketone PEEK Sheet for Aerospace and Medical Applications 5mm to 50mm thick

PEEK Sheet is a high-performance engineering plastic known for its exceptional mechanical properties and temperature resistance. Ideal for demanding applications in aerospace and medical fields.

Material Properties

PEEK, or Polyetheretherketone, is a semi-crystalline thermoplastic that exhibits remarkable mechanical strength and temperature stability. It can withstand temperatures ranging from -50°C to +250°C and has a melting point of approximately 343°C, making it suitable for high-temperature applications.

Advantages of PEEK Sheet

This material offers excellent chemical resistance, low flammability, and good radiation resistance. Its high tensile strength, ranging from 90 to 100 MPa, and its biocompatibility make it an ideal choice for various applications, including food contact.

Applications of PEEK Sheet

PEEK Sheet is widely used in demanding environments such as seals, backup rings, valves, and components for the aerospace and medical industries. It is also suitable for applications in automotive and chemical processing, as well as in the oil and gas sector.

Machining and Bonding

While PEEK can be machined effectively, it requires an annealing process to relieve stress before cutting. Bonding PEEK can be challenging due to its low surface energy, which may necessitate surface roughening to improve adhesive strength.

Specifications

• Material: Polyetheretherketone (PEEK)
• Temperature Resistance: -50°C to +250°C
• Melting Point: Approximately 343°C
• Tensile Strength: 90 to 100 MPa
• Thickness Range: 5mm to 80mm
• Food Compliant: Yes
• Self-Extinguishing: UL 94 VO

Benefits

• Safe for food contact applications
• Durable and long-lasting in harsh environments
• High temperature performance for demanding applications

Use Cases

• Seals
• Back up rings
• Valves
• Medical
• Aerospace

FAQ

Q: Is PEEK Sheet suitable for food applications?
A: Yes, all unfilled PEEK grades comply with FDA regulations for repeated food contact.

Q: Can PEEK Sheet be easily machined?
A: Yes, but it must be stress-relieved through an annealing process before machining to prevent cracks.

Q: What are the unique characteristics of PEEK Sheet?
A: PEEK Sheet has high radiation resistance and can absorb over 1000 units of radiation without losing mechanical properties.
