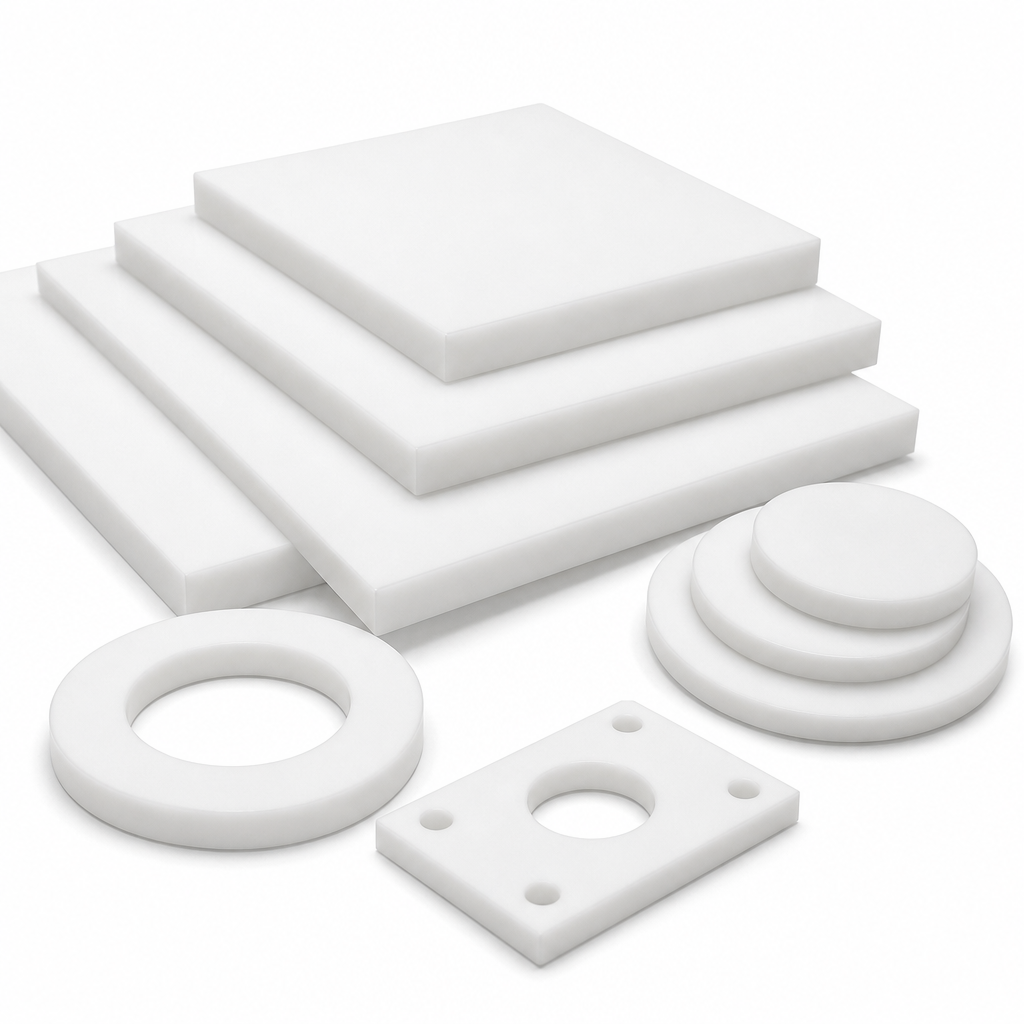

PTFE White Sheet 8mm to 40mm thick for Gaskets & seals

Virgin PTFE sheet in white, 8mm to 40mm thick, in 600mm x 600mm and 1200mm x 1200mm panels.

Virgin PTFE (polytetrafluoroethylene) has the lowest coefficient of friction of any solid, is inert to almost all chemicals and works continuously from -200°C to +260°C. In these thicker gauges it is used for flange gaskets, valve seats, slide bearings, insulators and machined components in chemical, pharmaceutical and food processing plant.

Key Features

• Chemical Inertness: Unaffected by virtually all acids, alkalis and solvents.
• Lowest Friction: Self-lubricating, non-stick surface for slide pads and bearings.
• Wide Temperature Range: Approximately -200°C to +260°C continuous.
• Electrical Insulation: Excellent dielectric properties across a wide frequency range.
• Food Contact: Virgin PTFE is FDA and EU food-contact compliant.
• Machinable: Cuts, turns, mills and drills with standard tools.

Specifications

• Material: Virgin PTFE, moulded and skived sheet
• Colour: White
• Thicknesses: 8, 10, 12, 16, 20, 25, 30 and 40mm
• Panel sizes: 600mm x 600mm and 1200mm x 1200mm
• Density: approximately 2.15 g/cm³
• Service temperature: approximately -200°C to +260°C

Applications

• Flange gaskets, seals and valve seats
• Bridge and structural slide bearings
• Wear pads, liners and guides
• Electrical insulators and bushes
• Machined components for chemical, pharmaceutical and food processing

Frequently Asked Questions

Q: What thicknesses are available?
A: 8mm to 40mm as listed above. Thinner PTFE sheet is listed separately.

Q: Can the sheet be cut to size?
A: This product is supplied in the standard panel sizes listed. Contact our sales office if you need a custom size.

Q: Is PTFE sheet suitable for food contact?
A: Yes. Virgin PTFE is FDA and EU food-contact compliant.

Q: Can PTFE be bonded or welded?
A: Not with ordinary adhesives. PTFE needs a chemically etched surface before bonding, so mechanical fixing is normally used.
