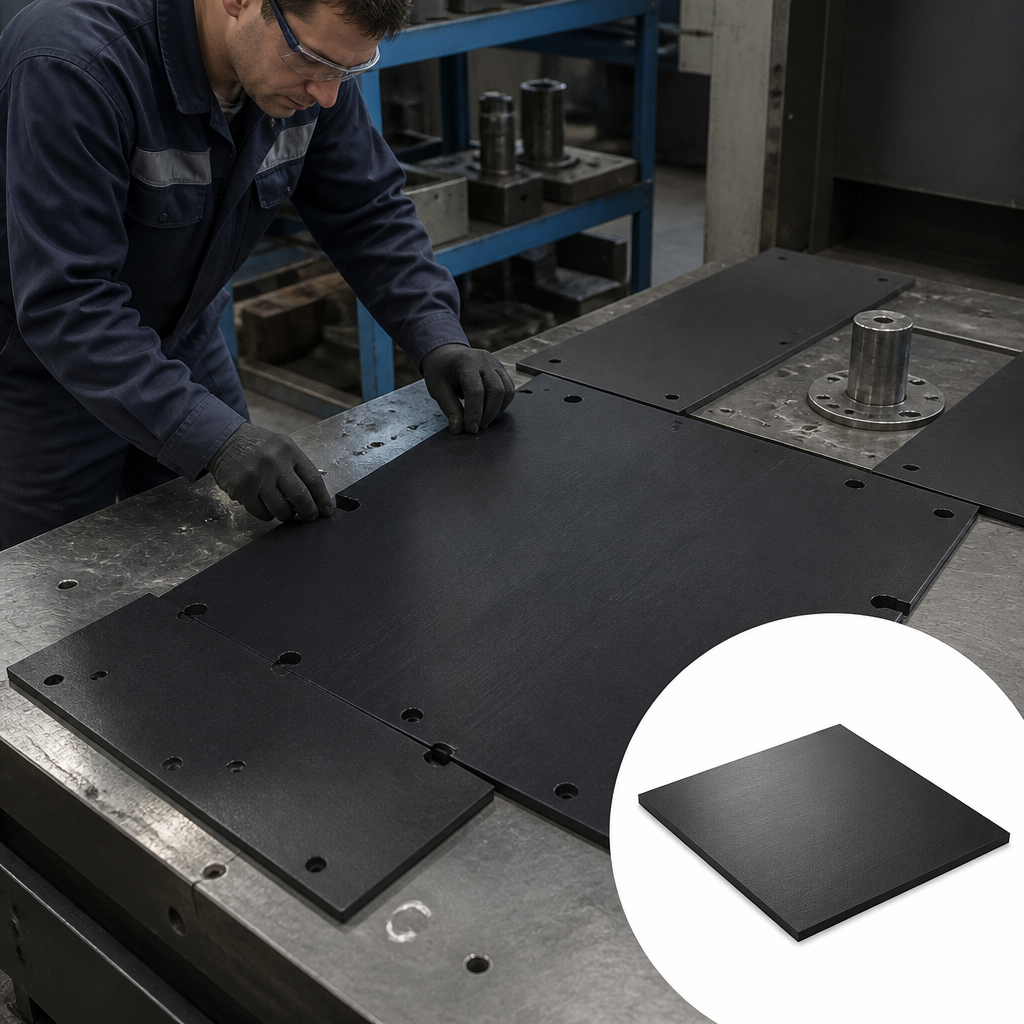

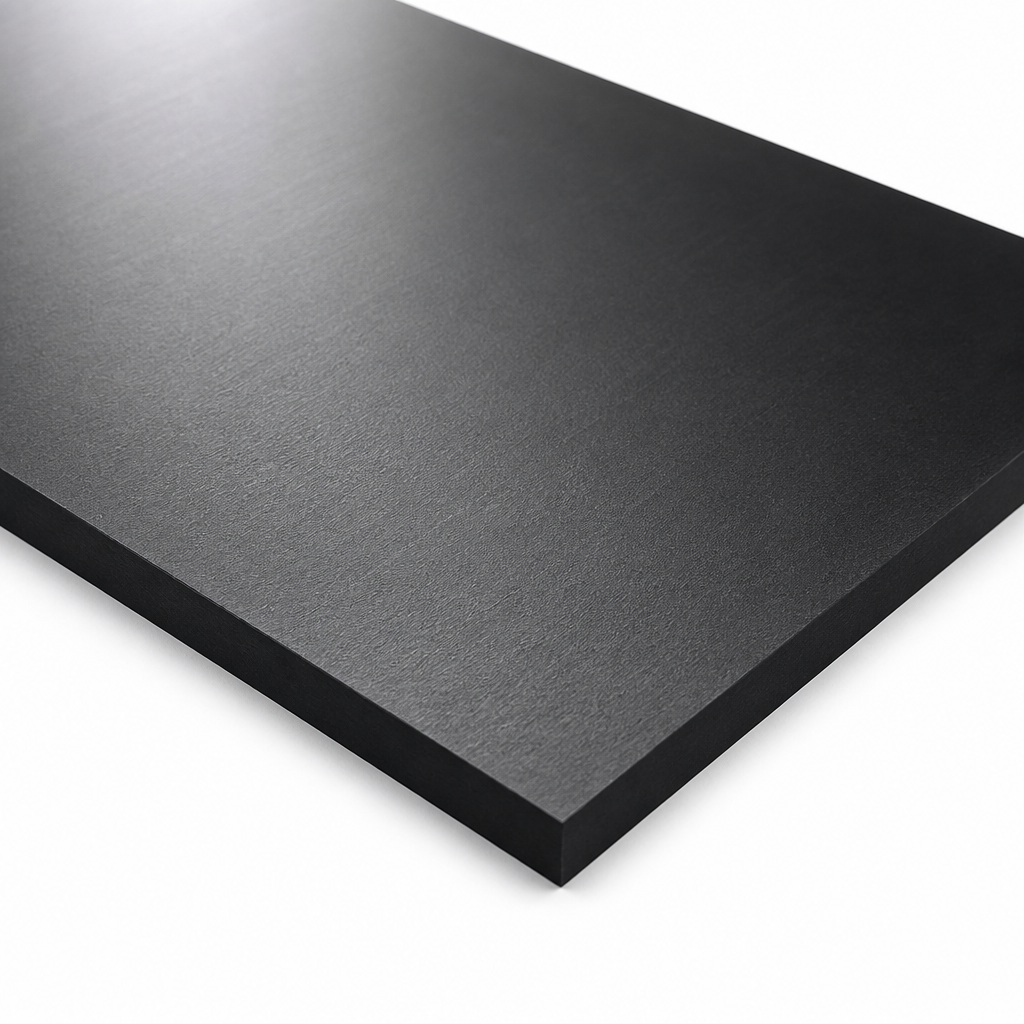

RG1000 Black UHMWPE Sheet for Industrial Applications 5mm to 40mm thick

RG1000 is a high-performance sheet made from recycled Ultra High Molecular Weight Polyethylene. Ideal for use in various industrial settings.

Material Composition

RG1000 is composed of Ultra High Molecular Weight Polyethylene (UHMWPE) with recycled material, providing an economical alternative to virgin grades.

Mechanical and Thermal Properties

This sheet exhibits a tensile strength of 22 MPa and a Shore D hardness. It can withstand service temperatures of up to 80°C and has a thermal conductivity of 0.43 W/(K*m).

Advantages and Disadvantages

RG1000 is odorless, tasteless, and nontoxic, with low moisture absorption and excellent abrasion resistance. However, it is not FDA approved and has limitations in high tensile applications.

Applications

Commonly used for lining chutes, hoppers, slide-ways, and wear blocks in aggressive environments, RG1000 is suitable for non-FDA applications such as conveyor wear plates and marine uses.

Machining and Bonding

RG1000 can be machined into various shapes using high-speed steel tooling. However, bonding this material can be challenging due to its low wettability.

Specifications

• Tensile strength: 22 MPa
• Shore hardness: Shore D
• Ball indentation hardness: 40 MPa
• Service temperature – short term: 80°C
• Service temperature – long term: 80°C
• Thermal conductivity: 0.43 W/(K*m)
• Thickness range: 5mm to 80mm
• Available sizes: 2000mm x 1000mm, 3000mm x 1250mm
• Available colours: Black, Green

Benefits

• Long lifespan with low drag
• Cost-effective for budget-sensitive projects
• Excellent wear and abrasion resistance
• Suitable for various industrial applications

Use Cases

• Lining chutes
• Hoppers
• Slide-ways
• Wear blocks
• Conveyor wear plates

FAQ

Q: Is RG1000 suitable for food applications?
A: No, RG1000 is not approved for any use in food applications.

Q: Can RG1000 be glued?
A: Bonding RG1000 can be difficult due to its low wettability.

Q: What are the machining characteristics of RG1000?
A: RG1000 requires high-speed steel tooling and can be challenging to clamp without distortion.
