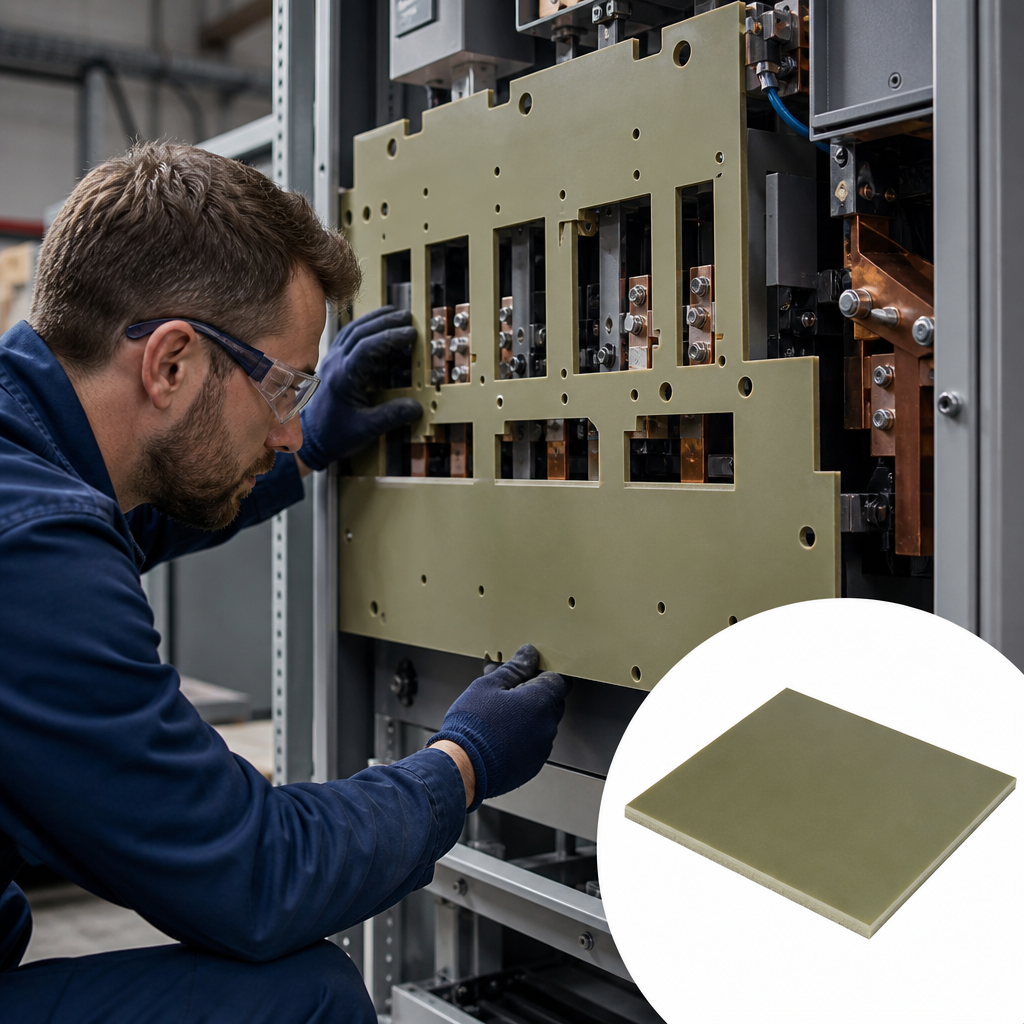

Tufnol Synthetic Resin Bonded Glass Fabric Sheet 1.6mm for Electrical Insulation 1.6mm to 16mm thick

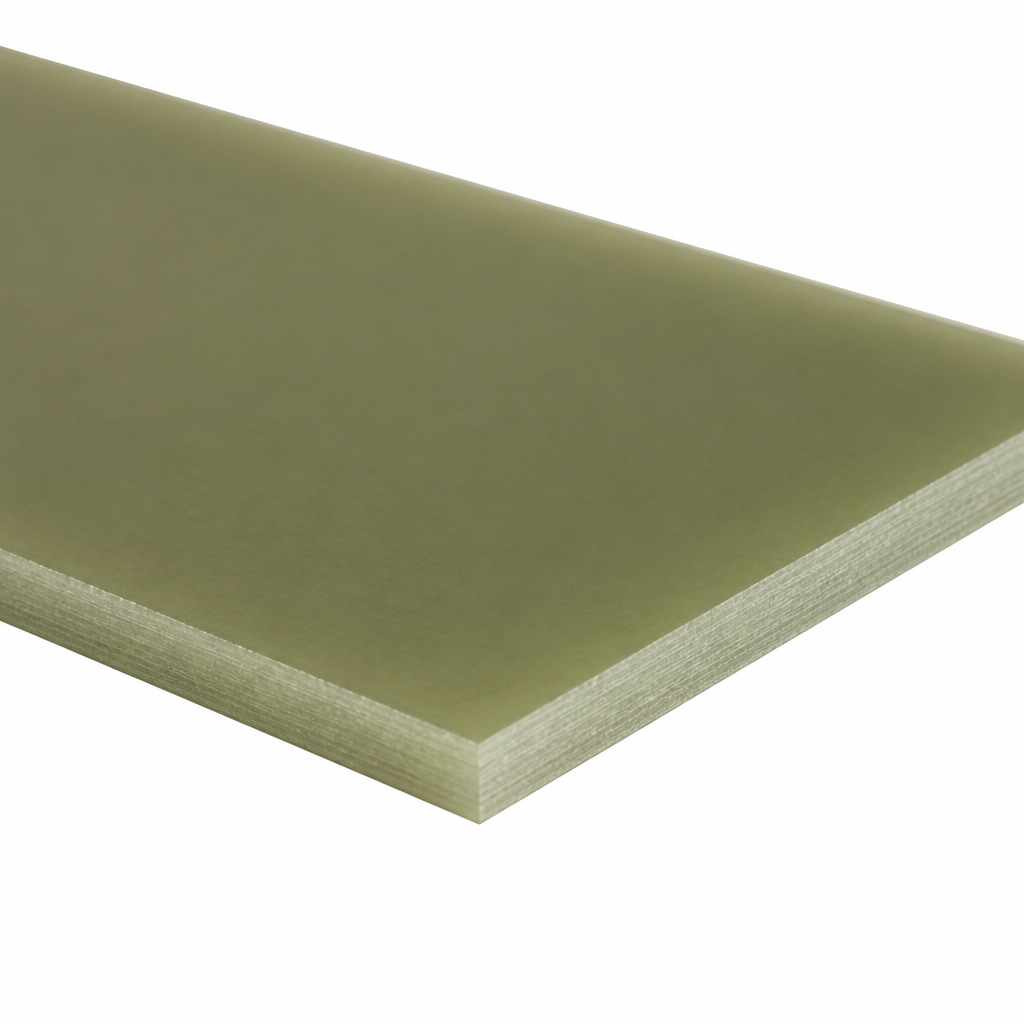

Tufnol 10G/40 Sheet is a high-performance synthetic resin bonded glass fabric. Ideal for insulation in electrical applications and structural components.

Material Composition

The Tufnol 10G/40 Sheet is made from synthetic resin bonded glass fabric, providing exceptional strength and rigidity. This material is designed for high-performance applications.

Mechanical Properties

This sheet has a density of 1.90 g/cm³, a tensile strength of 355 MPa, and a cross breaking strength of 490 MPa. It also features a Young's modulus of 17.7 GPa, ensuring excellent dimensional stability.

Thermal and Performance Characteristics

The maximum continuous working temperature for this sheet is 130°C, while it can withstand intermittent temperatures up to 150°C. It is classified as thermal class B, making it suitable for various high-performance applications.

Applications and Limitations

Tufnol 10G/40 Sheet is primarily used for insulation in high-performance electrical applications, structural insulation, and jigs. However, it is not suitable for bearing applications due to its abrasive nature.

Specifications

• Density: 1.90 g/cm³
• Tensile strength: 355 MPa
• Cross breaking strength: 490 MPa
• Young's modulus: 17.7 GPa
• Maximum working temperature – continuous: 130°C
• Maximum working temperature – intermittent: 150°C
• Thermal classification: B

Benefits

• Provides reliable insulation in electrical applications
• Resistant to high temperatures
• Durable and long-lasting

Use Cases

• electrical insulation
• but at low voltages only

FAQ

Q: Is Tufnol 10G/40 suitable for food applications?
A: No, Tufnol 10G/40 is not suitable for contact with food.

Q: Can Tufnol 10G/40 be glued or bonded?
A: Yes, Tufnol 10G/40 can be easily bonded with many commercially available adhesives.
