Glass Corner Seal for 8-10mm Glass - Bifold Angles, Clear U-Section

What this seal is

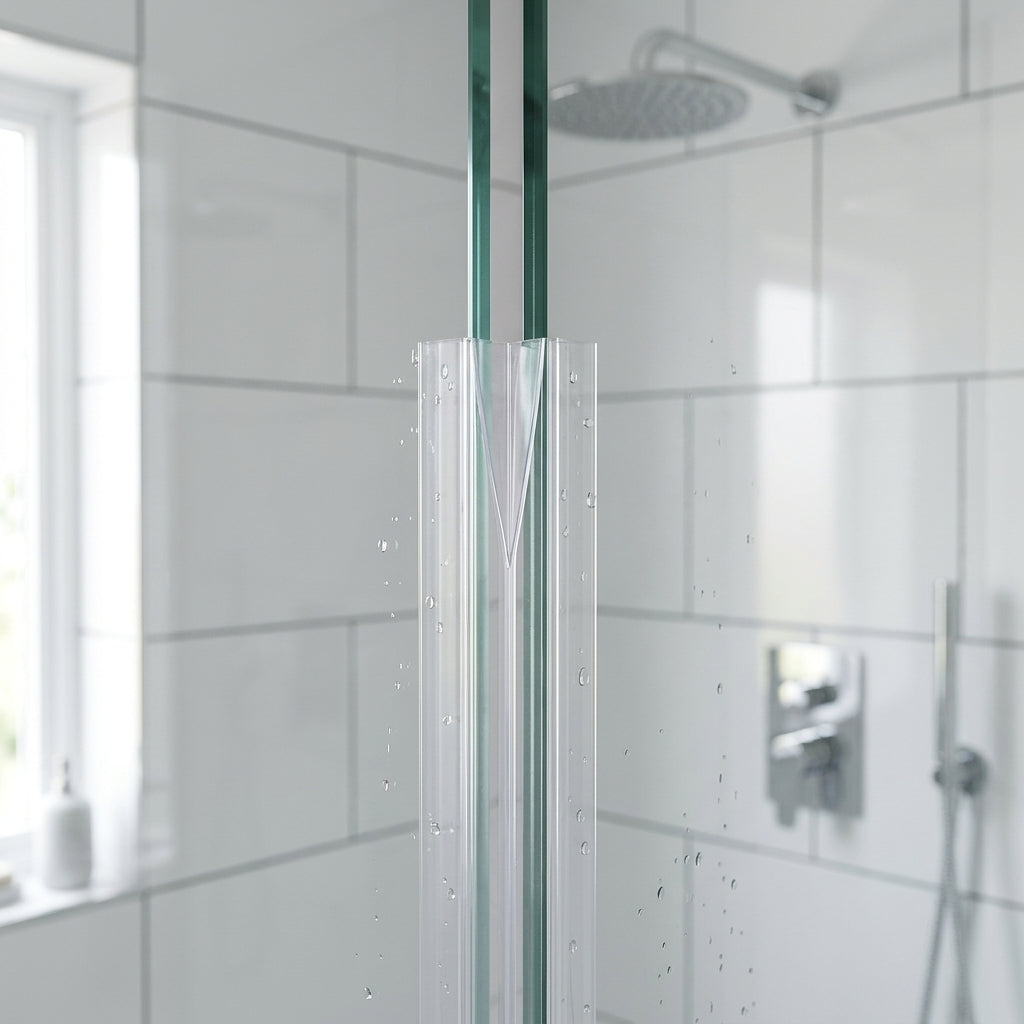

A vertical corner seal for frameless glass enclosures with 8–10mm glass. The rigid clear-PVC U-section pushes onto the edge of 8mm, 9mm or 10mm glass with no adhesive, and its angled fin closes the joint where two panels meet at an angle — the corner of a bifold enclosure.

If your panels sit parallel to each other rather than meeting at an angle, this is not the profile you need — see our straight glass-to-glass seals instead, or ask us and we will point you to the right one.

Choose your length

Available in 900mm or 2000mm lengths, each with a custom cut option (custom-cut items are non-returnable). Pick the length at or just above your panel height and trim it down at home.

Specification

Why fit this seal

Seals the corner properly. The angled fin is shaped for panels meeting at an angle, closing the corner joint that straight seals leave leaking.

No adhesive, no mess. The U-section grips 8–10mm glass on its own — it pushes straight on and comes off without residue.

Barely visible once fitted. Clear PVC keeps the frameless look of the enclosure intact.

Cut to fit at home. Order the next length up and trim it to your exact panel height.

Fitting in three steps

1. Measure. Check your glass is 8–10mm thick, confirm the two panels meet at an angled corner, and measure the panel height.

2. Choose. Pick 900mm or 2000mm — whichever is at or above your panel height — or add the custom cut option.

3. Fit. Cut to height if needed, then push the U-section onto the glass edge starting at the bottom and working upward — press it on, never slide it along the edge.

Not sure it fits?

Email a photo of your corner joint or your old seal to sales@industrial-polymers.co.uk and our UK team will confirm the right profile before you order — usually the same working day.
