T-Slot Carrier Seal for 10mm Glass - T Depths 6-27mm

What this seal is

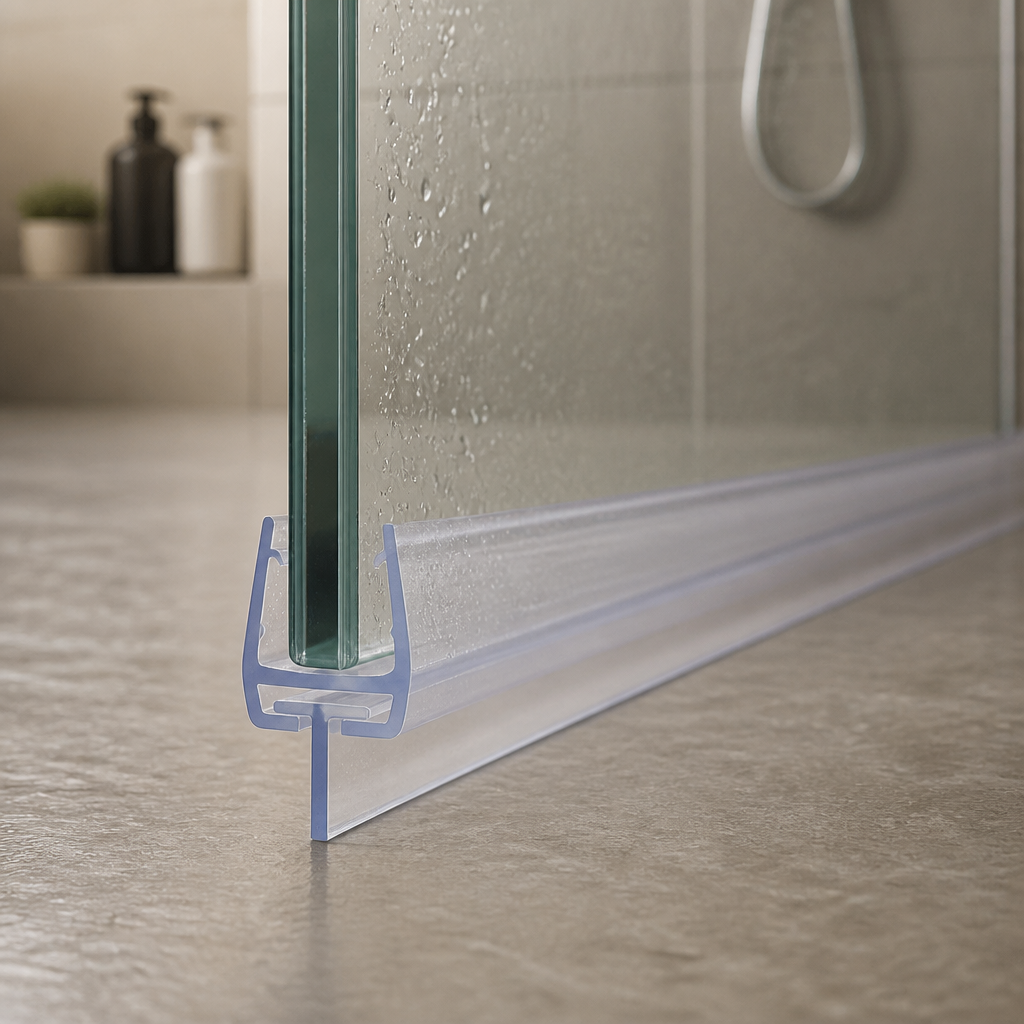

A clear two-part carrier seal for shower and bath screens with 10mm glass. The rigid PVC carrier channel — 13mm wide and 12mm tall, with an 8mm mouth widening to 10mm inside and internal gripping nibs — pushes straight onto the edge of the glass with no adhesive, and a separate T-shaped blade seal slots into the base of the channel to close the gap between the glass and the tray, bath, wall or tiles. Simply choose the T seal depth you need from the options above.

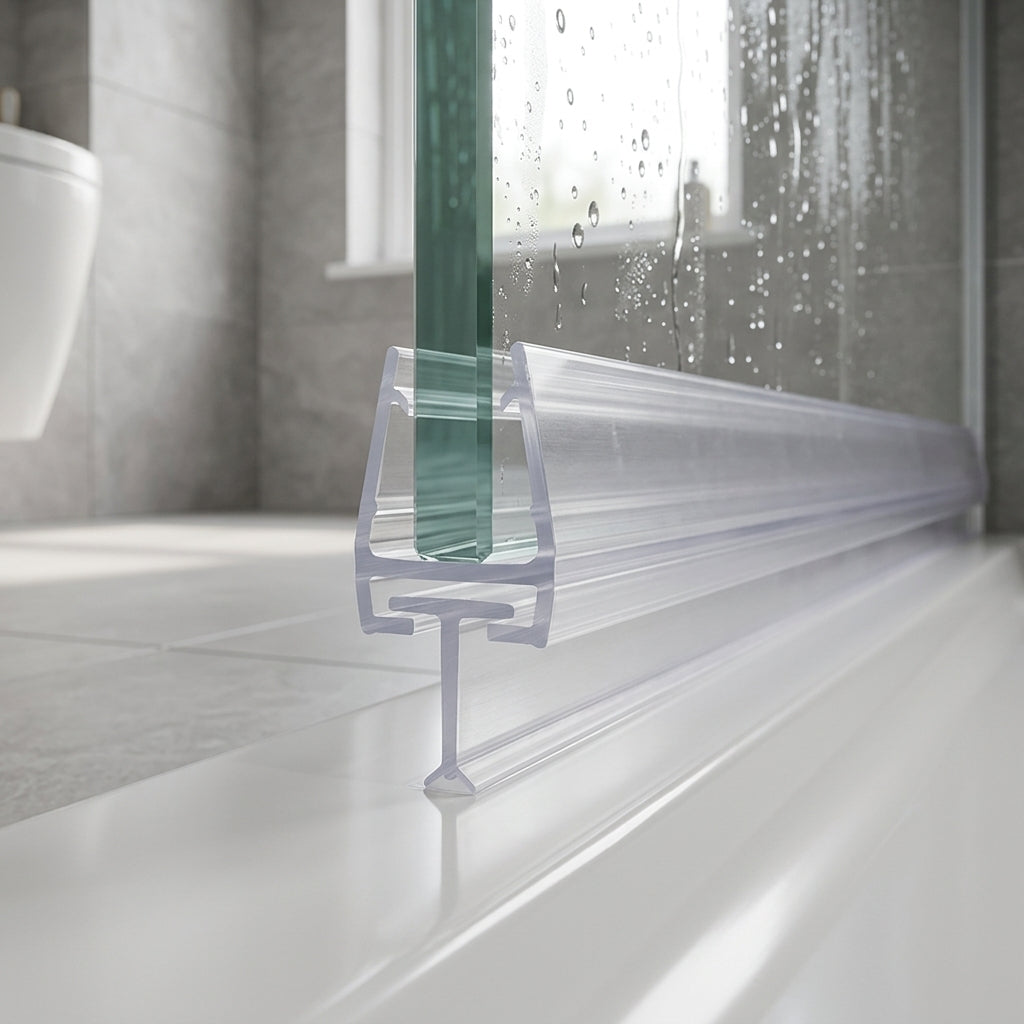

It is most often fitted along the bottom horizontal edge of a bath screen or shower door, and works just as well vertically on the upright of the glass to seal against the wall or tiles.

Choose the right T seal depth

Measure the gap you need to close, then pick the T seal depth that covers it — depths of 6mm, 13mm, 17mm, 22mm or 27mm are available. If your gap sits between two depths, choose the larger one — the flexible seal compresses to give a tighter finish.

Specification

Why fit this seal

Stops leaks and protects your bathroom. A worn or missing seal along the bottom or upright of the glass is the most common cause of water escaping the shower. Replacing it takes minutes and protects flooring and plaster from water damage.

No adhesive, no mess. The channel is designed to comfortably grip 10mm glass on its own — it pushes straight on and can be removed without leaving residue.

One carrier, five seal depths. Whatever the gap, the same push-on channel with the right T seal depth closes it neatly — and when the blade eventually wears, you can replace just the T seal, not the whole carrier.

Cut to fit at home. Order the next length up and trim it down, or use our custom cutting service and it arrives ready to fit.

Fitting in three steps

1. Measure. Check your glass is 10mm thick, measure the edge you are sealing, and measure the gap you need to close.

2. Choose. Pick the T seal depth that covers your gap and the nearest length at or above your measurement.

3. Fit. Trim to length if needed, push the carrier channel squarely onto the edge of the glass, then slot the T seal into the channel. No adhesive, no drying time. Never slide the carrier along the glass — this can damage it.

Not sure it fits?

Email a photo of your old seal or your measurements to sales@industrial-polymers.co.uk and our UK team will confirm the right profile, depth and length before you order — usually the same working day. Got curved glass? We can curve this seal to your measurements — just get in touch and we'll send you our simple measuring guide.
