Embedded Roof Walkway Matting for Liquid-Applied Roofs – 6mm Open-Grid PVC Bonded into the Coating, R11 Slip Rated | 10m Rolls, 2 Widths, Grey or Yellow
Price shown updates with the option you pick.

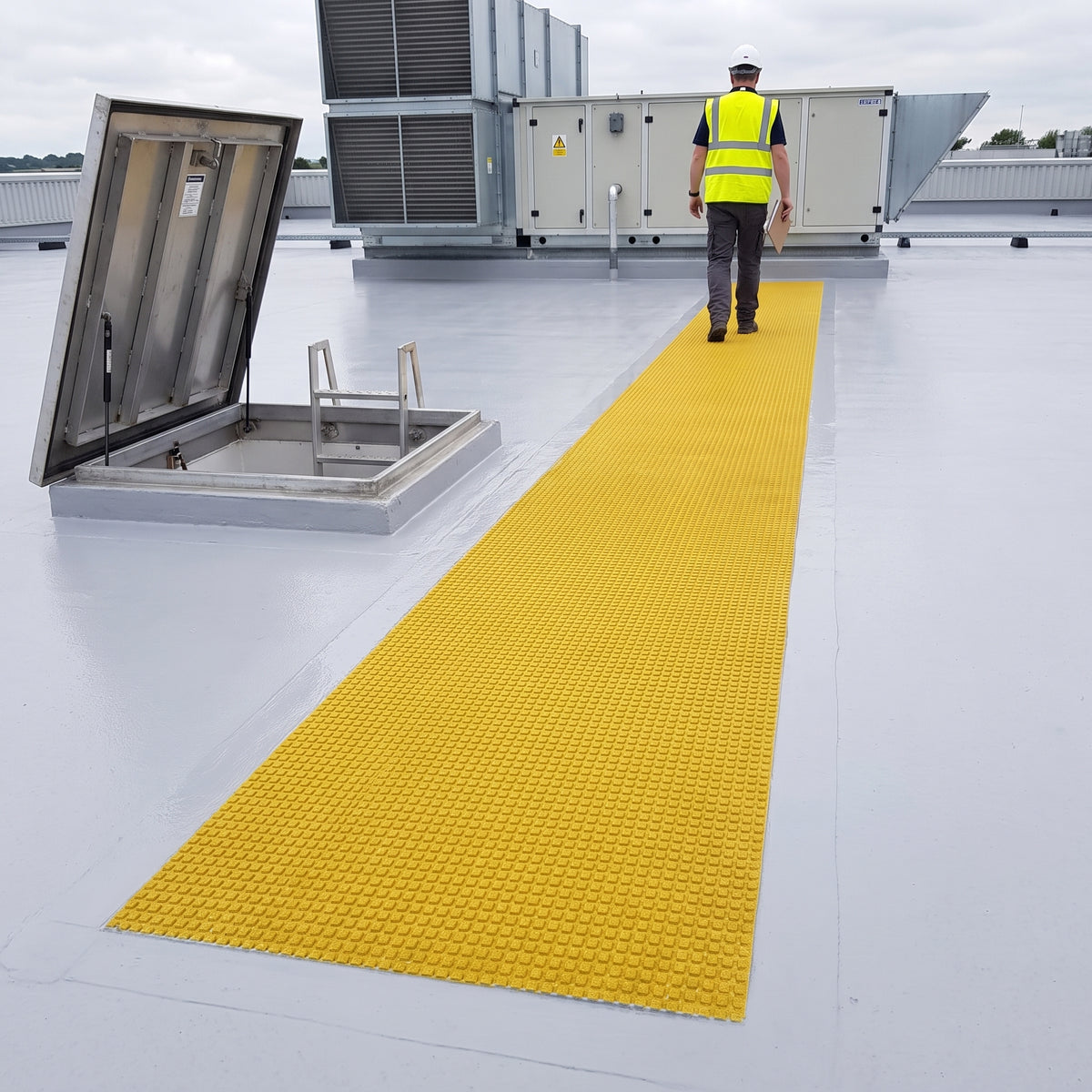

A walkway that becomes part of the roof — bedded into the liquid coating, so it cannot lift, creep or blow away, and the coating underneath is never walked on.
Liquid-applied roofs are the easiest roofs to damage with foot traffic. The coating is thin, it softens in summer, and every trip to a plant unit grinds grit into it. A loose-laid walkway helps, but on a coated roof there is a better answer: a walkway that is embedded into the top coat while it is wet, so the mat and the roof cure into one surface.
This is a 6mm open-grid PVC matting etched on both faces. The underside etching keys into the wet top coat; the top face gives an R11 slip-rated tread that stays clear because rain drains straight through the grid and evaporates. Once cured it is thermally stable, needs no fixings, and marks the safe route to every item of plant. Choose grey or yellow and a 0.6m or 0.91m wide 10m roll above. Longer rolls up to 50m are made to order.
EMBEDS INTO THE COATING
Laid into the wet top coat of the liquid roof system. The etched underside keys in, the coating rises through the open grid, and the mat becomes part of the roof. Nothing to lift, nothing to blow off.
R11 GRIP, DRAINS THROUGH
Etched top face rated DIN 51130 R11 with V10 drainage and ASTM F1677 1.0 dry / 0.8 wet. Rain runs through the grid rather than sitting on the tread.
PROTECTS THE MEMBRANE
Boots, ladder feet and toolboxes land on 6mm of flexible PVC instead of the coating. The mat contours to falls, upstands and uneven decks.
LIGHT AND QUICK TO FIT
3.7 kg/m², cut with a knife on site, rolled out and bedded in one visit as part of the coating works. No mechanical fixings and no penetrations.
EMBEDDED OR LOOSE LAID?
| Embedded (this page) | Loose-lay lattice | |
|---|---|---|
| Roof type | Liquid-applied coatings, fitted during the coating works | Single-ply PVC, felt, asphalt, metal deck, concrete — any finished roof |
| Height | 6mm, sits almost flush with the coating | 14mm, sits on top of the membrane |
| Fixing | Bonded into the top coat, permanent | Loose laid, lifts for inspection and re-roofing |
| Wind | Not a factor once embedded | Stable to 60mph loose laid |
| Slip rating | DIN 51130 R11 | R10 standard, R11 heavy-duty |
| Choose it for | New or re-coated liquid roofs, exposed and windy sites, a walkway that must never move | Existing roofs, temporary routes, roofs that will be re-covered |
Rule of thumb: if the roof is being coated or re-coated, embed the walkway now and it is there for the life of the coating. If the roof is already finished, take the loose-lay lattice instead. On TPO or EPDM single-ply, use the TPO walkway matting.
HOW MUCH DO I NEED?
| 10m x 0.6m roll | Covers 6.0 m². About 22 kg. Single-file access route — hatch to plant, plant to plant, gutter and outlet runs. |
| 10m x 0.91m roll | Covers 9.1 m². About 34 kg. Room to pass and carry a toolbox, and for working areas in front of plant. |
| Planning the route | Measure from the access point to every item of plant that gets a visit. Add a working area at each unit, typically 1m deep by the width of the unit. Round up to whole rolls and keep an offcut for ladder landings. |
| Longer rolls | Continuous lengths up to 50m are made to order for long straight runs. Tell us the length and we will quote it. |
| Cut lengths | Not listed here. Send us the lengths and we will price them cut to size. |
COLOURS
Two stock colours, the same mat and the same price in each. Use the colour selector above to see each one in place.
- Yellow — the usual choice. Reads as a marked safe route from the hatch and from a distance, so visiting contractors follow it.
- Grey — sits quietly on grey and white coatings where the roof is overlooked and the walkway should not dominate.
WHICH ROOFS IS IT FOR?
| Liquid-applied roof systems | This mat. Designed to be bedded into the wet top coat of most cold-applied liquid roofing systems. Confirm compatibility and the embedding sequence with your coating manufacturer before you start; we can help with that. |
| Re-coating an existing roof | Yes. The walkway goes in with the new top coat, so the maintenance route is defined from day one. |
| Finished roofs, no coating works planned | Take the loose-lay roof walkway matting instead. |
| TPO and EPDM single-ply | Take the TPO walkway matting. |
TYPICAL APPLICATIONS
- Maintenance routes across liquid-coated flat roofs to air-handling units, chillers and plant decks
- Roof hatch and ladder landing zones
- Solar PV array access paths on coated roofs
- Gutter, outlet and rooflight inspection routes
- Working areas in front of plant where engineers stand and set tools down
- Exposed and high-level roofs where a loose-laid walkway would be at risk from wind
TECHNICAL SPECIFICATION
| Composition | Flexible polyvinyl chloride (PVC), non-porous, UV resistant |
| Construction | One-piece open-grid moulding, etched surface on both the top and the underside |
| Height | 6mm (1/4") |
| Roll sizes | 10m x 0.6m (6.0 m²) | 10m x 0.91m (9.1 m²). Lengths up to 50m to order |
| Tolerances | Height ±0.5mm | length 0 / +0.3m | width ±1cm. All dimensions nominal |
| Weight | 3.70 kg/m² (0.76 lb/sq.ft) |
| Colours | Grey or yellow |
| Slip resistance | DIN 51130 R11, V10 drainage | DIN 51097 Class C | ASTM F1677 dry/wet 1.0 / 0.8 |
| Fire | DIN 4102 Part 1 Class B2 | BS 2782 Part 1 method 140A:1992 (ISO 1210:1992) |
| Service temperature | -23°C to +60°C. Thermally stable once embedded |
| UV | Resistant to PVC degradation. Solar reflectance index (SRI) values available on request |
| Chemical | Resistant to most acids, alkalis and oils — ask for the chemical resistance sheet if you need a specific check |
| Hygiene | Non-porous PVC, naturally resistant to bacterial growth, with antimicrobial and antifungal additive |
| Reversion | Up to 2% thermoplastic shrinkage possible before embedding; once bedded into the coating the mat is dimensionally stable |
| Fixing | Embedded into the wet top coat of the liquid roof system. No adhesive, no mechanical fixings, no penetrations |
| Environment | 100% recyclable; contains no SVHC substances under REACH |
FOR SPECIFIERS
Suggested clause: Embedded roof walkway matting, flexible PVC open-grid construction etched both faces, 6mm high, 3.7 kg/m², slip resistance DIN 51130 R11 / DIN 51097 C / ASTM F1677 1.0 dry 0.8 wet, fire DIN 4102-1 B2, service temperature -23°C to +60°C, REACH SVHC free, bedded into the top coat of the liquid-applied roof system in accordance with the coating manufacturer's instructions. 10m rolls, [0.6 / 0.91]m wide, colour [grey / yellow].
Tell us the coating system, the route length and the number of plant items and we will return a marked-up quantity and the data sheet.
INSTALLATION
- Plan the route first. Hatch to plant along the line people actually walk, with a working area at each unit. Mark it out on the roof before the top coat goes down.
- Cut to length dry. A sharp knife through the grid. Cut fractionally long to allow for up to 2% reversion; it is stable once embedded.
- Apply the top coat along the route to the coating manufacturer's wet film thickness, then lay the mat into it while the coat is wet.
- Roll it in. Press the mat down so the coating rises through the grid and the etched underside is fully wetted. Add coating over the edges and any thin spots so the grid is locked in.
- Butt joints, never overlap. Adjacent rolls butt tightly end to end; the coating bridges the joint.
- Keep off it until cured for the coating manufacturer's stated cure time.
Always follow the coating manufacturer's instructions for embedding. Sequence and cure times vary between systems.
CLEANING & MAINTENANCE
Routine: hose it down in place; a pressure washer clears grit from the grid. Non-porous PVC, nothing soaks in.
Annual: walk the route with the roof inspection and check the coating around the edges of the run is intact.
After works: sweep off screws, swarf and debris before they are trodden into the grid.
FREQUENTLY ASKED QUESTIONS
Which liquid roof coatings can it be embedded in?
It is designed for most cold-applied liquid roofing systems. Because coatings vary, confirm compatibility and the embedding method with your coating manufacturer before installation. Send us the system name and we will check with you.
Can I lay it loose instead of embedding it?
No. At 6mm with an etched underside it is made to be bonded in. For a loose-laid walkway use the 14mm open-lattice roof walkway matting.
Does embedding damage the waterproofing?
No. The mat sits in the top coat, above the waterproof layers, with no fixings and no penetrations. It protects the coating from foot traffic rather than compromising it.
Will it blow off?
Not once embedded. It is bonded into the coating across its whole area, which is why it suits exposed and high-level roofs where loose-laid matting is at risk.
Is it safe when wet?
Yes. The etched top face is rated R11 and water drains straight through the open grid. Clear snow and ice from any roof walkway before use.
Can I get longer rolls or cut lengths?
Yes. Continuous lengths up to 50m are made to order, and we can cut lengths to size before dispatch.
NOT SURE WHAT YOU NEED?
Send us the coating system, the route length and the number of plant items. We will confirm the grade, the width, the colour and the number of rolls.
