Roof & Wet Area Walkway Matting – 14mm Loose-Lay Open-Lattice PVC, R10 Slip Rated, 4 Colours | 10m Rolls, 3 Widths
Price shown updates with the option you pick.
A safe route across a roof, without touching the membrane — loose laid, lifted for inspection, and still working years on.
Maintenance traffic is what damages flat roofs. Every visit to a plant unit, a solar array or an air-handling unit puts boots, ladders and toolboxes onto a single-ply membrane that was never meant to be walked on. This is the walkway that goes down first: an open-lattice PVC runner, 14mm high, laid loose along the access route so people walk on the matting and not the roof.
It is a two-layer welded moulding — cross-ribbed top bars with a diamond-cut tread, sitting on channelled underbars — so water runs away beneath it rather than sitting on it, and the roof beneath keeps draining normally too. Rated DIN 51130 R10 with V10 drainage, stable loose laid to 60mph, and made in four colours including black. Choose the colour and a 0.6m, 0.91m or 1.22m wide 10m roll above. For exposed roofs, full sun or standing water, see the heavy-duty R11 grade with four-way drainage.
LOOSE LAY, NO FIXINGS
Nothing penetrates the membrane. Roll it out along the route, cut to length on site, and lift or roll it back for inspection, recoating or re-roofing. The roofing guarantee is undisturbed.
STAYS PUT IN WIND
Stays in position loose laid in winds to 60mph (96 km/h). In flat-platform laboratory testing it held to 94mph.
GRIPS WHEN WET
Cross-directional top ribs with a diamond-cut tread, DIN 51130 R10, with V10 drainage so rain never sits on the walking surface.
WORKS IN ANY WEATHER
Rated for service from -23°C to +60°C, UV stabilised for permanent exterior use, phthalate free, and resistant to most acids, alkalis and oils.
NEED MORE? THE HEAVY-DUTY GRADE
| Standard (this page) | Heavy-duty, four-way drainage | |
|---|---|---|
| Slip resistance | DIN 51130 R10 | DIN 51130 R11 |
| Drainage | V10, two-way | V10, four-way through a redesigned base bar |
| UV weatherability | UV stabilised | Improved compound for full-sun roofs |
| Wind, laboratory | 94mph | 125mph |
| Weight | 6.6 kg/m² | 5.8 kg/m² |
| Colours | Light grey, black, white, yellow | Light grey, white, yellow |
| Choose it for | Internal wet floors, plant rooms, covered gantries, sheltered roof routes | Exposed roofs, long service life, standing water, full sun |
Rule of thumb: for a plant room, a covered route or a sheltered roof, this standard grade is enough and comes in black. For an exposed roof you want still doing its job in ten years, take the heavy-duty grade.
WHICH ROOF IS IT FOR?
| PVC single-ply, felt, asphalt, mastic, concrete, metal deck | This mat. The usual choice on every roof type except the two below. |
| TPO and EPDM single-ply | Take the TPO walkway matting instead. PVC in long-term contact with TPO or EPDM can mark the membrane; the TPO version is made from the same polymer family as the roof. |
| Green or ballasted roofs | Ask. The route usually needs a paved or decked strip rather than loose-laid matting. |
| Not a roof at all | Plant rooms, wash-down bays, pontoons, jetties and pool plant rooms. The same lattice gives a defined, drained, R10 route on any wet floor. |
HOW MUCH DO I NEED?
| 10m x 0.6m roll | Covers 6.0 m². About 40 kg. Single-file access route — hatch to plant, plant to plant, gutter runs, paths between panel rows. |
| 10m x 0.91m roll | Covers 9.1 m². About 60 kg. The general-purpose width — room to pass and to carry a toolbox. |
| 10m x 1.22m roll | Covers 12.2 m². About 81 kg. Two-way traffic, working platforms around plant, and areas where equipment is set down. |
| Planning the route | Measure from the access point to every item of plant that gets a visit. Add a working area at each unit — typically 1m deep by the width of the unit. Round up to whole rolls, and keep an offcut for under ladder feet and step platforms. |
| Worked example | Hatch to two air-handling units, 14m of route plus a 1m x 2m working area at each unit: 14m of 0.6m roll plus 4 m² of working area = three 0.6m rolls with 4m spare for the ladder and the outlet. |
| Cut lengths | Not listed here. Send us the lengths and we will price them cut to size. |
COLOURS
Four stock colours, the same mat and the same price in each. Use the colour selector above to see each one in place.
- Light grey — the default. Sits quietly against grey and white membranes and hides rooftop soiling between cleans.

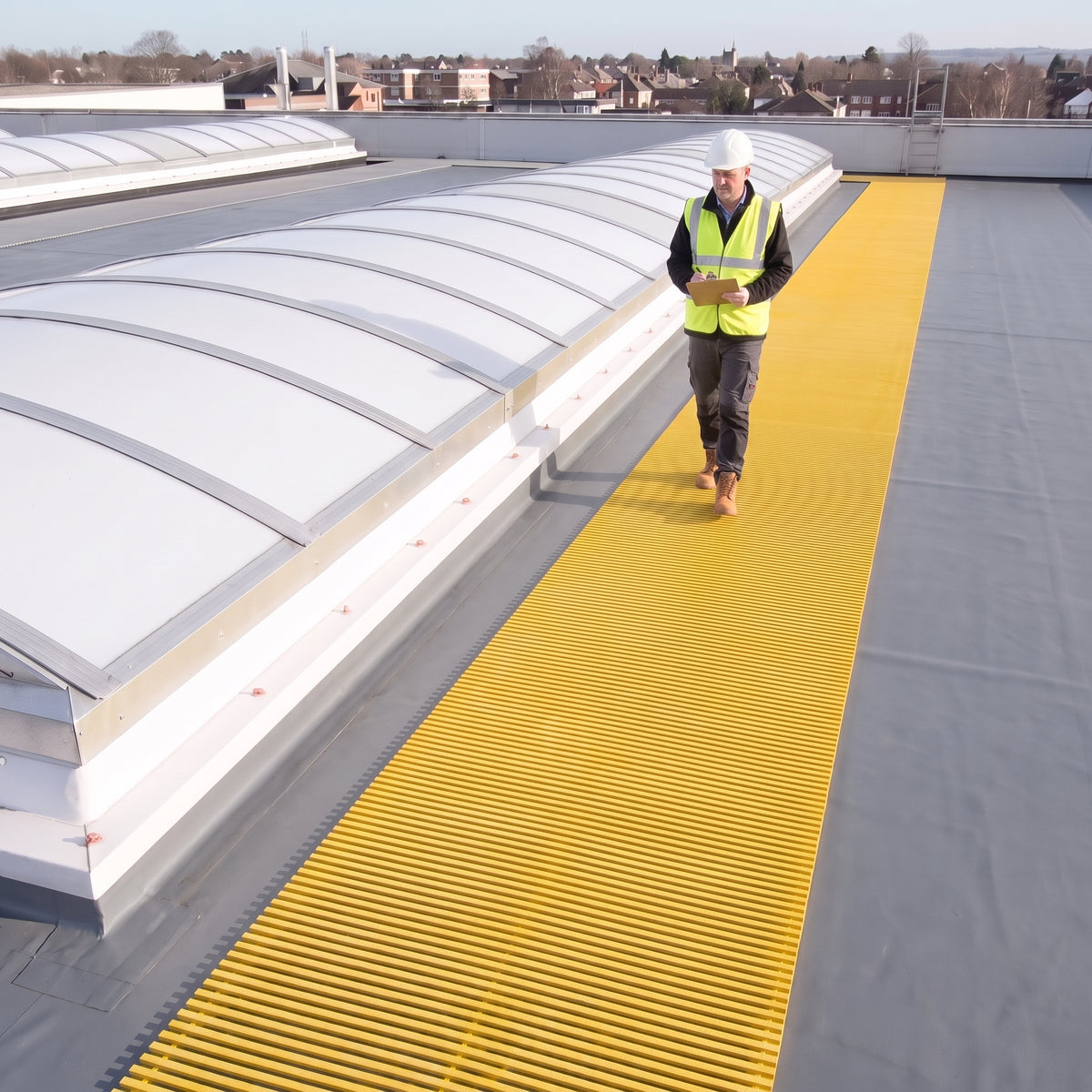

- Yellow — the usual choice on a roof. Reads as a marked route from a distance and in poor light, so contractors who do not know the roof follow it.
- White — for reflective cool-roof membranes where the walkway should not read as a dark stripe from above.
- Black — disappears against a dark membrane where the route does not need marking, and hides soiling best of all. Standard grade only.
Other colours are produced to order for larger projects — ask with the quantity and we will confirm lead time.
JOINING, EDGING & ANCILLARIES
Everything on one page — matting accessories: ramp edging, snap track, connector clips, floor hooks and cold weld paste. This mat is 14mm, so take the 14mm snap track and the 14mm x 60mm ramp edging.
| End to end | Rolls butt together on the roof. On most routes that is all that is needed — the weight of the mat holds the joint. Butt, never overlap: an overlap is a trip edge. |
| Connector clips | Dual-purpose 14mm clips, packs of 10. Join sections side to side or end to end where a run must stay as one piece — exposed corners, routes that contractors drag equipment along. |
| Snap track | 14mm two-part track, 2.5m lengths, for a flush permanent joint when rolls are laid side by side to cover a working platform. |
| Ramp edging | Not normally needed on a roof. Where an internal walkway is crossed on foot, or a run meets a paved terrace or door threshold, fit 14mm x 60mm PVC ramp edging; one tube of cold weld paste per 10m. |
TYPICAL APPLICATIONS
- Flat roof maintenance walkways and routes to air-handling units, chillers and plant decks

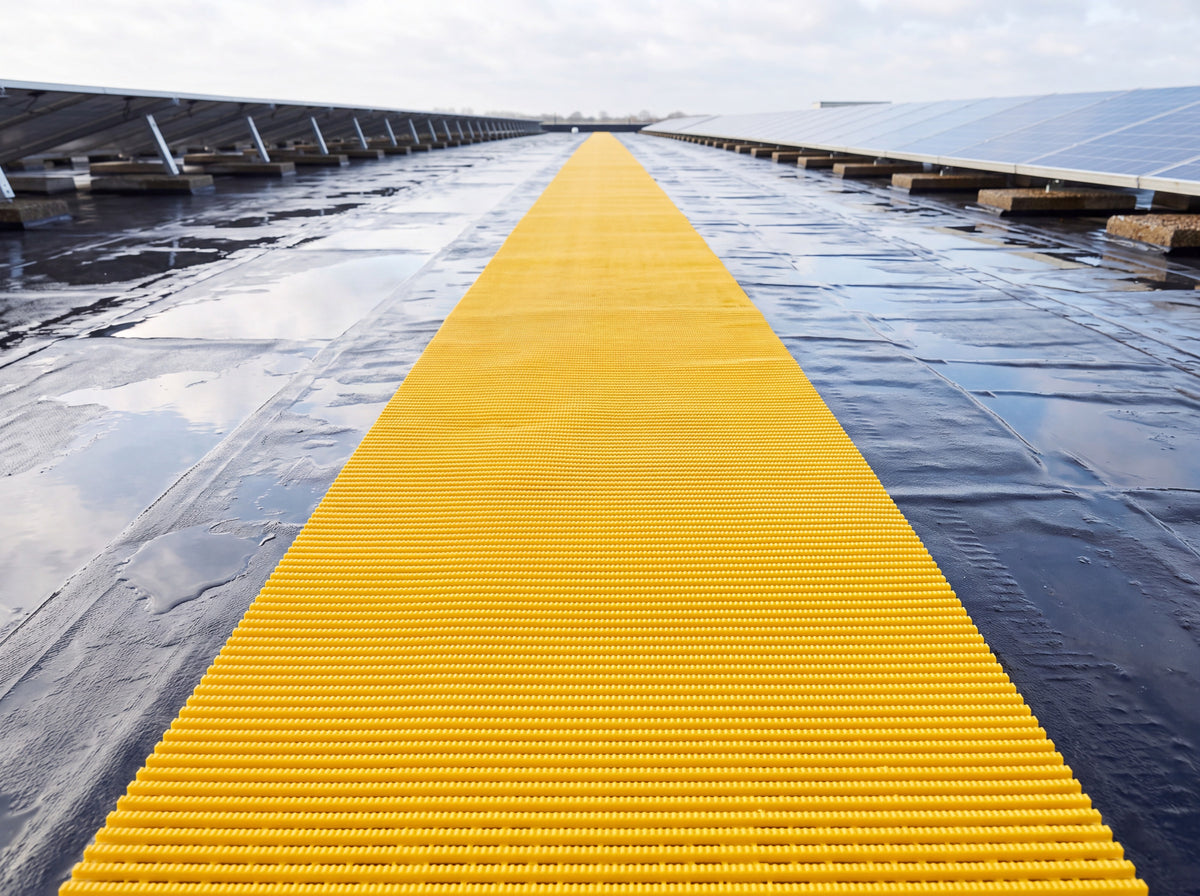

- Solar PV array access and inter-row maintenance paths
- Roof hatch and ladder landing zones, gutter and outlet inspection routes
- Gantries, external stairs and high-level walkways
- Plant rooms, pump rooms, wash-down and hose-down areas
- Pontoons, jetties, marina walkways and pool plant rooms
- Temporary protection during re-roofing and plant replacement
TECHNICAL SPECIFICATION
| Composition | Flexible polyvinyl chloride (PVC), phthalate free, UV stabilised, non-porous |
| Construction | Two-layer welded open lattice — cross-ribbed diamond-cut top bars over channelled underbars. One-piece flexible moulding |
| Height | 14mm (9/16") |
| Roll sizes | 10m x 0.6m (6.0 m²) | 10m x 0.91m (9.1 m²) | 10m x 1.22m (12.2 m²) |
| Tolerances | Height ±0.5mm | length 0 / +0.3m | width ±1cm. All dimensions nominal |
| Weight | 6.6 kg/m² (1.3 lb/sq.ft) |
| Colours | Light grey, black, white or yellow. Other colours to order |
| Slip resistance (DIN 51130) | R10 |
| Slip resistance (ASTM) | F1677 dry/wet 1.0 / 0.9; E303 dry 74 with the lines / 94 across, wet 58 / 80 |
| Drainage (DIN 51130) | V10 |
| Wind resistance | Stable loose laid to 60mph (96 km/h). Laboratory flat-platform test to 94mph (150 km/h); ASTM D3161 95mph perpendicular / 145mph parallel |
| Fire | EN ISO 13501-1:2007 — Cfl-s1 |
| Service temperature | -23°C to +60°C (-9°F to +140°F). Slight size variation may occur at temperature extremes |
| Chemical | Resistant to most acids, alkalis and oils — ask for the chemical resistance sheet if you need a specific check |
| Hygiene | Non-porous PVC, naturally resistant to bacterial growth |
| Acoustic | Excellent sound absorption properties |
| UV light | Resistant to PVC degradation. For permanent external use |
| Reversion | Allow up to 2% thermoplastic shrinkage when cutting to a fixed length; faster in hot locations |
| Fixing | Loose laid. No adhesive, no mechanical fixings, no penetration of the roof covering |
| Environment | 100% recyclable; contains no SVHC substances under REACH; phthalate free |
| BIM | Revit and IFC objects available on request |
FOR SPECIFIERS
Suggested clause: Loose-laid roof walkway matting, flexible PVC, two-layer welded open-lattice construction, 14mm high, 6.6 kg/m², slip resistance DIN 51130 R10, drainage DIN 51130 V10, reaction to fire EN ISO 13501-1 Cfl-s1, stable when loose laid to 60mph, service temperature -23°C to +60°C, phthalate free, REACH SVHC free, laid without adhesive or mechanical fixing. 10m rolls, [0.6 / 0.91 / 1.22]m wide, colour [light grey / black / white / yellow].
Tell us the roof type, the route length and the number of plant items and we will return a marked-up quantity, the data sheet and BIM objects for the model.
INSTALLATION
- Follow the route people actually take — hatch to plant, not wall to wall. A 0.91m run along the true desire line beats a wide mat in the wrong place.
- Sweep first. Clear grit, loose fixings and debris from the route before unrolling.
- Lay it loose. Unroll and let it relax flat — it contours to the roof falls and over upstands. Nothing is fixed, screwed or bonded, so the waterproof layer stays intact.
- Cut on site. A sharp knife through the bars. Cut slightly loose against an upstand to allow for reversion.
- Keep outlets clear. The lattice drains through, but never bury a rainwater outlet under a joint — break the run around it.
- Butt, do not overlap. Fit clips or snap track where a section must stay joined.
CLEANING & MAINTENANCE
Routine: hose it in place, or roll it up and jet-wash both the matting and the surface underneath. Non-porous PVC — nothing soaks in.
Annual: walk the route with the roof inspection, clear leaf litter from under the run so the drainage keeps working, and re-lay any section moved by contractors.
After works: lift the mat where trades have been working, sweep out screws and swarf, and re-lay. The point of the mat is what it keeps off the membrane; that only leaves the roof when someone lifts it.
DOWNLOADS
- Technical data sheet (PDF, 2 pages) — covers the standard and heavy-duty grades side by side: sizes, tolerances, performance data, ancillaries, installation and cleaning.
- BIM objects (Revit / IFC) — available on request; tell us the project and we will send them over.
FREQUENTLY ASKED QUESTIONS
Will it damage my roof membrane?
No — protecting it is the point. It is a flexible one-piece moulding laid loose, with no fixings and nothing sharp, and it spreads foot traffic that would otherwise land directly on the membrane. On TPO or EPDM membranes use the TPO version.
Will it blow off?
It is stable loose laid in winds up to 60mph and held to 94mph on a flat platform in laboratory testing. For very exposed high-level roofs, tell us the site and we will advise on layout, clips or ballasting, or take the heavy-duty grade with its 125mph rating.
Standard or heavy-duty?
Internally, under cover or on a sheltered roof, this standard grade is fine and comes in black as well. Outdoors and exposed, take the heavy-duty grade for its four-way drainage, R11 tread and better UV weatherability.
Which colour for a roof?
Yellow, almost always. It marks the route clearly against a dark membrane and stays visible in poor light. Light grey suits a visible roof where appearance matters, white sits quietly on a reflective cool-roof membrane, and black disappears against a dark membrane where the route does not need marking.
Can I use it indoors in a wet plant room?
Yes — that is one of its best uses. R10, free draining, and it lifts for cleaning. Edge it with 14mm ramp edging where it is crossed on foot.
Is it safe when wet, icy or snowy?
Rain drains straight through the open lattice and the diamond-cut top bars give a firm footing. It is designed to function down to -23°C. Snow and ice should be cleared from any roof walkway before use.
How do I cut it?
A sharp utility knife through the bars. Cut slightly loose against an upstand to allow for up to 2% reversion, or ask us to cut lengths before dispatch.
Do you have BIM objects and a data sheet?
Yes. The data sheet is in the Downloads section above; Revit and IFC objects are sent on request.
Do you sell other sizes or colours?
The three roll widths and four colours above are stocked. Other colours are made to order for larger projects, and we can supply cut lengths.
NOT SURE WHAT YOU NEED?
Send us the route length, the membrane type and whether the roof is exposed. We will specify the grade, the width, the colour and the number of rolls, and price any clips or edging the run needs.
