Heavy-Duty Trolley Route Matting – 14mm Close-Mesh PVC, R11 Slip Rated | 10m Rolls, 3 Widths
Price shown updates with the option you pick.
The mat for floors where wheels run all day: a 14mm close-mesh PVC mat that trolleys glide over, with R11 grip underfoot and drainage for spills.
Most open-grid matting is built for feet, so small wheels catch in the holes and the mat moves. This one is built for wheels. The top is a close mesh of fine, diamond-textured ribs that gives a smooth, continuous rolling surface for trolleys, carts, roll cages and pallet trucks. The rib pattern still gives certified R11 slip resistance underfoot. Underneath, a two-layer construction lifts the walking surface and lets spills drain away (V10 drainage).
At 14mm thick and 10.5 kg/m², it is a genuinely heavy-duty mat. It lies flat under its own weight, follows uneven floors and stays put under wheeled traffic. It is made from non-porous flexible PVC that resists chemicals, oils and acids. It comes in 10m rolls in three widths, in black, green or red, and you can cut it to fit on site.
BUILT FOR WHEELS
The close mesh top gives trolleys, carts and pallet trucks a smooth run, with no holes for small castors to drop into.
R11 GRIP, V10 DRAINAGE
It is certified to DIN 51130 R11 for slip resistance. The two-layer construction drains spills away from the walking surface.
FOUR-YEAR WARRANTY
It is heavy 14mm PVC made to last. The manufacturer backs it with a four-year warranty.
WHICH WIDTH, AND HOW MANY ROLLS?
| 0.6m × 10m roll | Covers 6 m² and weighs about 63 kg. For single-file routes, bench fronts and machine operator positions. |
| 0.91m × 10m roll | Covers 9.1 m² and weighs about 96 kg. For standard trolley routes and aisle walkways. |
| 1.22m × 10m roll | Covers 12.2 m² and weighs about 128 kg. For wide routes, pallet-truck lanes and two-way traffic. |
| Wider areas | Join rolls side by side with connector clips or snap track. Divide your area in m² by the roll's coverage and round up. |
| Cut lengths | Only full rolls are listed here. If you need a shorter length, ask us for a price. |
COLOURS
- Black: the industrial standard. It hides oil, tyre marks and wear.
- Green: popular in food production and anywhere you want to zone the floor.
- Red: a high-visibility colour for marking trolley routes and hazard zones.
TYPICAL APPLICATIONS

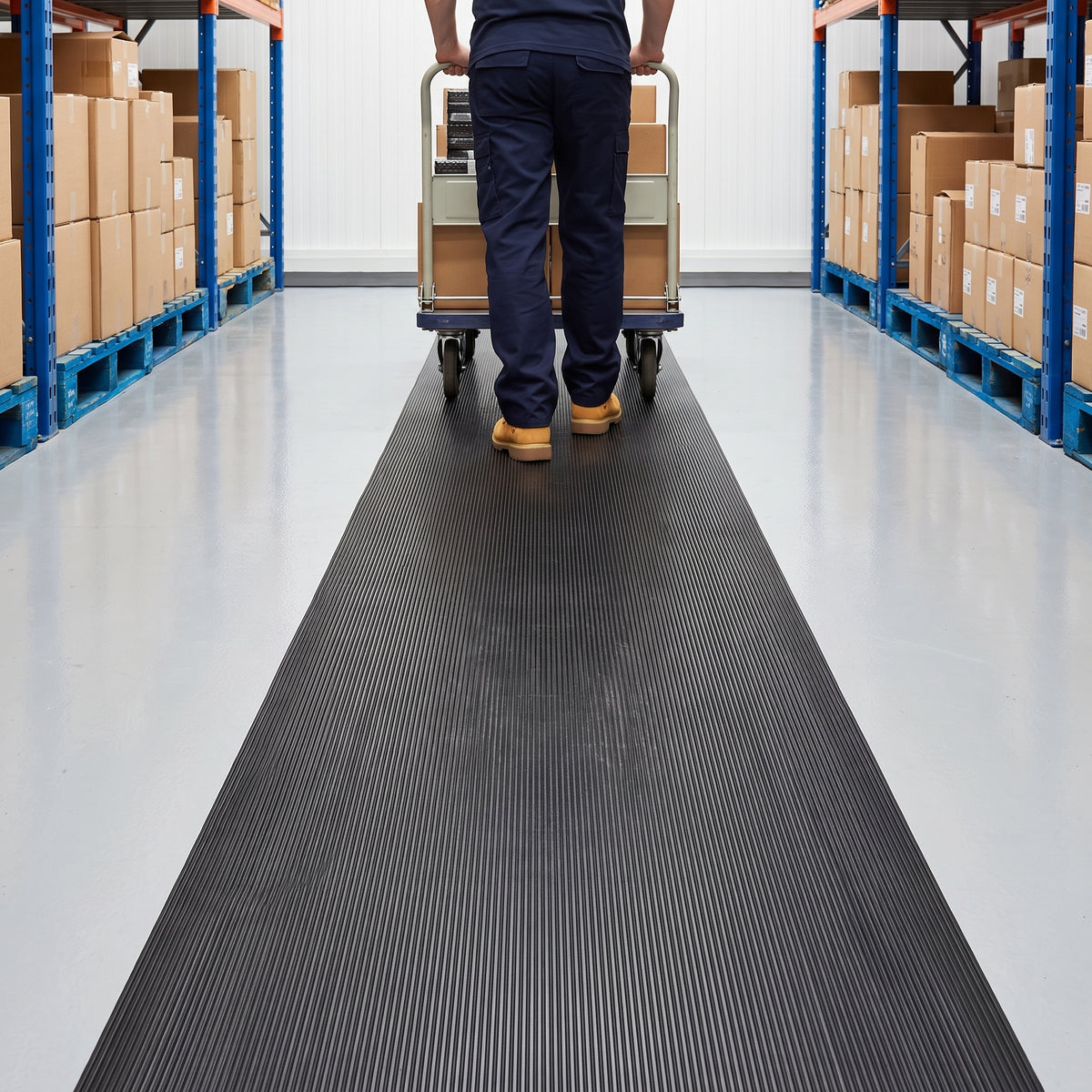

- Warehouse and distribution-centre trolley routes
- Food and drink production and packing areas
- Engineering workshops and machine shops
- Goods-in, dispatch and loading areas
- Retail back-of-house with roll-cage traffic
- Any busy floor with frequent wheeled traffic and occasional spills
TECHNICAL SPECIFICATION
| Composition | Non-porous flexible Polyvinyl Chloride (PVC), two-layer construction with a close-mesh, diamond-tread top surface |
| Colours | Black, green or red |
| Height | 14mm (9/16") |
| Roll sizes | 10m × 0.6m (6 m²), 10m × 0.91m (9.1 m²), 10m × 1.22m (12.2 m²) |
| Weight | 10.5 kg/m² (2.14 lb/sq.ft), about 63 kg, 96 kg or 128 kg per roll |
| Slip resistance | DIN 51130: R11. ASTM E303 dry 72–93, wet 57–79 |
| Drainage | DIN 51130: V10 |
| Fire | EN ISO 13501-1:2007: Cfl-s1 |
| Chemical | Resists most acids, alkalis and oils. Ask us for the chemical resistance sheet if you need to check a specific chemical |
| Hygiene | Non-porous PVC that naturally resists bacterial growth |
| Acoustic | Excellent sound absorption |
| Thermal | Works from -23°C to +60°C. Size may vary slightly at the extremes |
| UV light | Resists PVC degradation |
| Reversion | Allow up to 2% for thermoplastic shrinkage when cutting to a fixed length. It shrinks faster in hot environments |
| Environment | 100% recyclable, and contains none of the chemicals on the EU's REACH list of substances of very high concern (SVHC) |
| Warranty | 4 years (manufacturer's warranty) |
EDGING, JOINING & FIXING
At 14mm, exposed edges on a trolley route need a ramped edge so wheels can roll on and off smoothly. Use 14mm PVC ramp edging (60mm or 100mm wide), or aluminium edging for a fixed finish. Join rolls side by side with side-to-side connector clips, or with 14mm two-part snap track for a permanent joint. See our matting accessories, and ask us to confirm the 14mm parts for your layout.
INSTALLATION
Sweep the floor clean. Unroll the matting and let it relax flat, ideally overnight. Cut it to length on site with a sharp knife, allowing up to 2% for shrinkage. It is loose-laid, and its weight holds it in place. Add ramp edging to any edge that wheels cross.
CLEANING & MAINTENANCE
Lift or roll it up to clean underneath. Hose it down or pressure-wash it, then let it drain and dry. No special cleaning tools are needed.
FREQUENTLY ASKED QUESTIONS
Will it take a pallet truck?
Yes. It is designed for frequent wheeled traffic: trolleys, carts, roll cages and hand pallet trucks. The close mesh gives castors a smooth, continuous surface.
How is it different from open-grid matting?
Open grids like our heavy-duty grip matting drain faster but have holes that small wheels can catch in. This close-mesh mat is the better choice where wheels run constantly. Choose open grid where feet and liquid are the main issue.
Is it slip resistant when wet?
Yes. It is certified R11 under DIN 51130, and the two-layer construction drains spills away from the walking surface (V10).
Does it need fixing down?
Usually not. At 10.5 kg/m² it lies flat and stays put. Fit ramp edging where wheels cross an edge.
Can I cut it myself?
Yes, with a sharp knife. Allow up to 2% for shrinkage when cutting to a fixed length.
How do I clean it?
Roll it up, clean the floor underneath, then hose or pressure-wash the mat and let it drain.
