Matting & Ground ProtectionPVCSKU IPM-BTN-DG-20X098
Button-Pattern PVC Floor Matting – 3.3mm Vinyl Roll, 20m x 0.98m
Hard-wearing 3.3mm PVC sheet matting with deep, penny-sized raised studs that keep light spills below the walking surface. Built for kitchens, bars, cellars and light-industrial floors.
This is a 3.3mm flexible PVC floor covering supplied in 20m rolls, 0.98m wide, so one roll covers 19.6 m². It is the thickest and heaviest of our vinyl sheet mattings. The surface is covered in deep, round, domed studs, each about the size of a 1p coin, set close together. Feet stand on the studs, so light spills of water, drinks or cleaning fluid sit in the channels between them instead of under a shoe. It resists chemicals, oils and acids, and it is easy to mop or vacuum.
It still lies flat, follows the subfloor and cuts to size on site with a sharp knife. Choose from dark grey, blue or black.
MADE FOR LIGHT SPILLS
The deep studs hold small spills below the walking surface. That makes it a good fit for back-of-house, bars, cellars and packing lines where liquid gets on the floor.
HARD-WEARING
At 3.3mm and 4.29 kg/m², it is our heaviest vinyl sheet. It stands up to constant foot traffic, trolleys and kegs.
EASY TO CLEAN
The surface is non-porous PVC with smooth, domed studs. Mop or vacuum it, with no special tools needed.
HOW MANY ROLLS?
| 20m x 0.98m roll | Covers 19.6 m² and weighs about 84 kg. Ideal for walkways, kitchen and bar runs, cellars, and bench and line areas. |
| Wider areas | Butt rolls side by side. Divide your area in m² by 19.6 and round up. |
| Cut lengths | Only full rolls are listed here. If you need a shorter length, ask us for a price. |
COLOURS
- Dark grey: a neutral grey for kitchens, stores, workshops and plant rooms. It hides everyday soiling.
- Blue: bright and easy to see, and popular in food production, packing and clean areas.
- Black: for cellars, bars and workshops. It hides drink stains, oil and wear.
TYPICAL APPLICATIONS

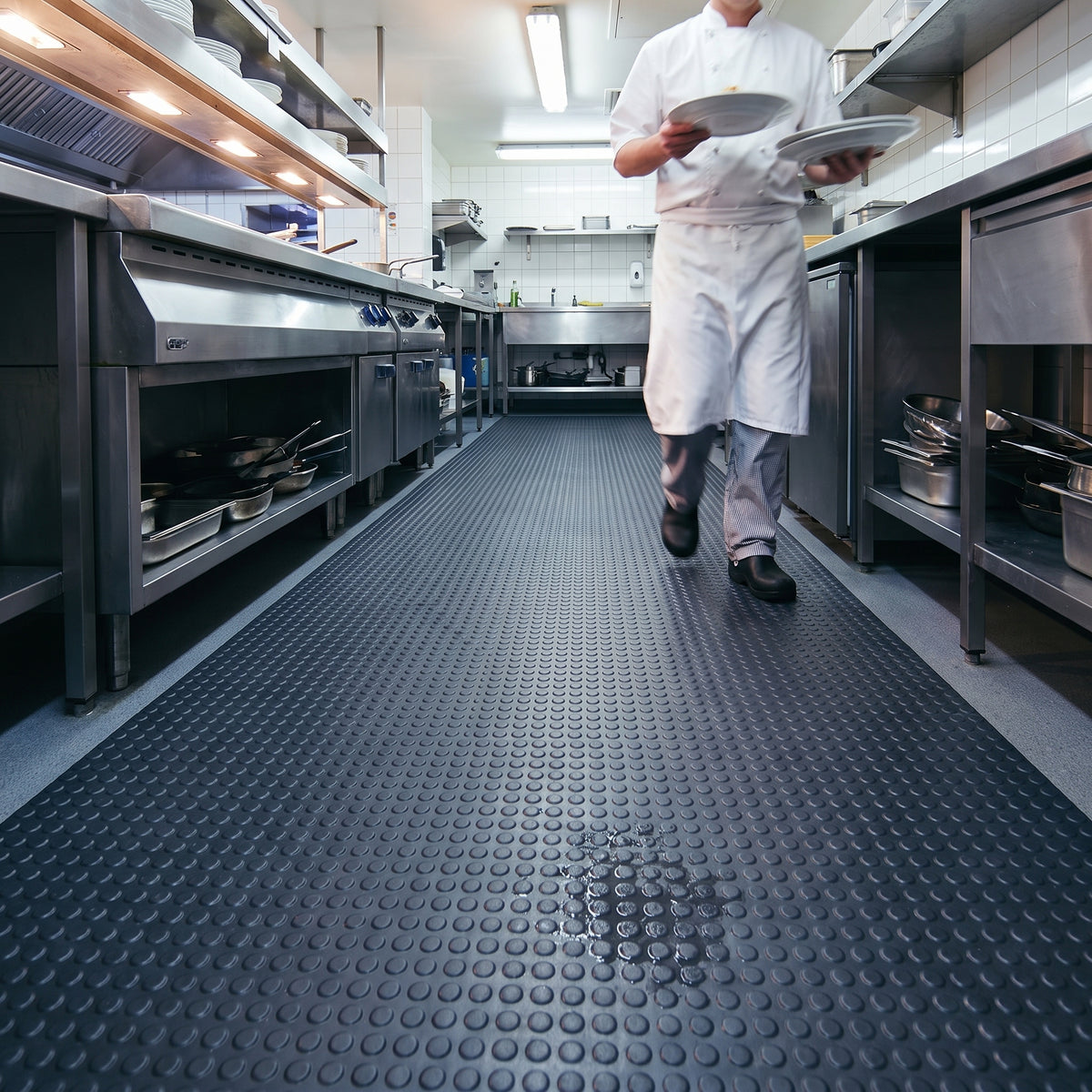

- Restaurant and hotel back-of-house walkways
- Bar service areas and beer cellars
- Food and drink production, bottling and packing lines
- Commercial and light-industrial workplaces
- Workshops, stores and goods-in areas
- Any floor that sees light spills and constant foot traffic
TECHNICAL SPECIFICATION
| Composition | Flexible Polyvinyl Chloride (PVC), one-piece sheet with deep, round, domed studs, each about 20mm across (penny-sized) |
| Colours | Dark grey, blue or black |
| Height | 3.3mm (1/8") |
| Roll size | 20m x 0.98m (19.6 m²) |
| Weight | 4.29 kg/m² (0.88 lb/sq.ft), about 84 kg per roll |
| Slip resistance | Good slip resistance from the raised stud surface |
| Fire | EN 13501-1:2007: Bfl-s1 |
| Chemical | Resists most acids, alkalis and oils. Ask us for the chemical resistance sheet if you need to check a specific chemical |
| Thermal | Works from -23°C to +60°C (-9°F to +140°F). Size may vary slightly at the extremes |
| UV light | Resists PVC degradation |
| Reversion | Allow up to 2% for thermoplastic shrinkage when cutting to a fixed length. It shrinks faster in hot environments |
| Environment | 100% recyclable, and contains none of the chemicals on the EU's REACH list of substances of very high concern (SVHC) |
| Warranty | 2 years (manufacturer's warranty) |
INSTALLATION
Sweep the floor clean and dry. Unroll the matting and let it relax flat at room temperature, ideally overnight. Then trim it to size with a sharp knife against a straight edge. Loose-laying suits most areas. On busy trolley routes, or where you want a permanent floor, bond it down with a suitable flooring adhesive or double-sided tape.
CLEANING & MAINTENANCE
Vacuum or sweep to remove grit. Mop with warm water and a neutral or mild alkaline cleaner, working the mop between the studs, then let it dry. No special cleaning tools are needed.
FREQUENTLY ASKED QUESTIONS
How big are the studs?
Each stud is round and domed, about 20mm across, which is roughly the size of a 1p coin. They are set close together, so a work boot covers four or five of them.
Will it cope with spills?
Light spills, yes. The deep studs hold small amounts of liquid below the walking surface. It isn't a drainage mat, though. For floors that are wet all the time, choose open-mesh grip matting, or grease-resistant open grid for fat and oil.
How is it different from your dot matting?
The studs are larger and deeper, and the sheet is thicker: 3.3mm, against 1.6mm for the small-dot matting and 2.5mm for the heavy-duty dot matting. Choose this stud matting where spills are likely.
Will trolleys and kegs roll over it?
Yes. Trolleys, roll cages, hand pallet trucks and kegs all roll over it. It isn't designed for powered forklift traffic.
Does it need gluing down?
Usually not. At 4.29 kg/m² it stays put. Glue or tape it where wheels turn tightly or where it crosses a busy route.
Can I cut it myself?
Yes, with a sharp utility knife and a straight edge. Let it relax flat before you cut, and allow up to 2% for shrinkage.
Is it suitable for bare feet?
No. For showers, pool surrounds and changing rooms, choose ribbed barefoot matting.
Product details
| SKU | IPM-BTN-DG-20X098 |
|---|---|
| Material | PVC |
| Form | Mat |
